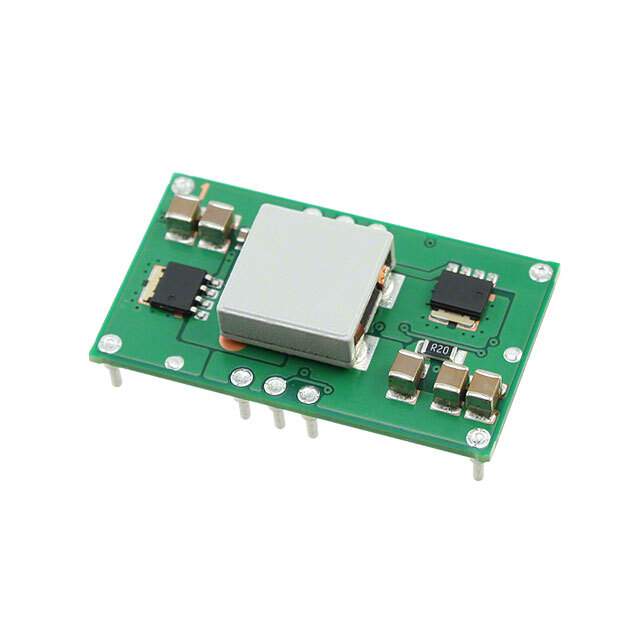

PTH03020WAH

Name: PTH03020WAH
Brand: Texas Instruments
SKU: 283781
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	PTH03020WAH
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP .8-2.5V 22A T/H 10DIP
Datasheet	PTH03020WAH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH03020W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.95V
Voltage - Input (Max)	3.65V
Voltage - Output 1	0.8 ~ 2.5 V
Current - Output (Max)	22A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	10-DIP Module
Size / Dimension	1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	95%
Power (Watts) - Max	55W
Win Source Part Number	026931-PTH03020WAH
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH03020WAH CAD Model

Alternative Products

Description

The PTH03020WAH is a high-performance, cutting-edge product from Texas Instruments.

Series: PTH series
Type: Non-isolated power module
Input Voltage Range: 2.95V to 5.5V
Output Voltage Range: Adjustable from 0.8V to 3.6V
Efficiency: Up to 96%
Size: Compact size
Protection Features: Over-temperature and under-voltage lockout
