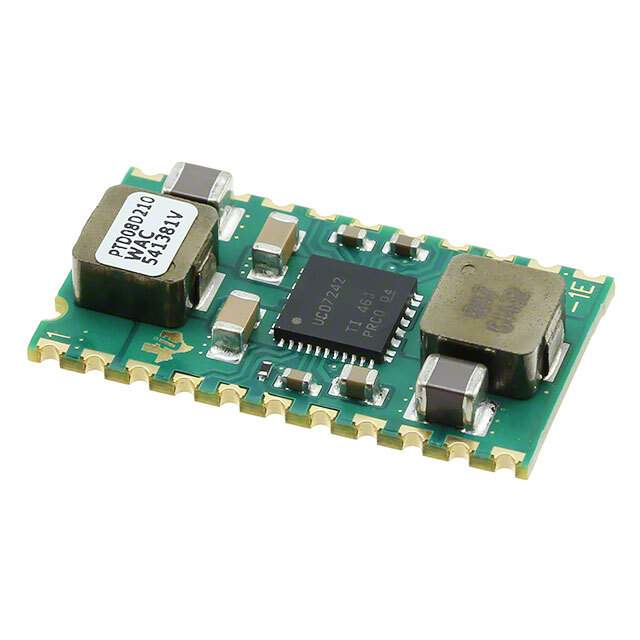

PTD08D210WAC Real Image
Same model may have multiple batches, images only for reference.

PTD08D210WAC

Part No PTD08D210WAC
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER DUAL 0.7-3.6V
Datasheet
PTD08D210WAC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series Powertrain?
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 2
Voltage - Input (Min) 4.75V
Voltage - Input (Max) 14V
Voltage - Output 1 0.7 ~ 3.6 V
Voltage - Output 2 0.7 ~ 3.6 V
Current - Output (Max) 10A, 10A
Applications ITE (Commercial)
Features OCP, OTP
Mounting Style SMD/SMT
Package 22-SMD Module
Size / Dimension 1.10" L x 0.60" W x 0.24" H (27.9mm x 15.2mm x 6.0mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 96%
Power (Watts) - Max 72W
Win Source Part Number 145290-PTD08D210WAC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTD08D210WAC CAD Model

Description

The PTD08D210WAC is a high-performance, 10A rated, non-isolated DC-DC converter module from Texas Instruments, a globally recognized leader in the semiconductor industry.

  • Series: PTD series.
  • Type: Dual output, adjustable.
  • Input Voltage Range: 3V to 14V.
  • Output Voltage: Adjustable from 0.8V to 3.6V.
  • Feature: Auto-Track sequencing.
  • Efficiency: Up to 95%.
  • Technology: TurboTrans technology.
  • Protection Features: Over-temperature and under-voltage lockout protections, output over-current and short-circuit protections.
  • Package: Low-profile surface-mount package (33mm x 13.46mm x 8.5mm).
  • Operating Temperature Range: -40°C to +85°C.
