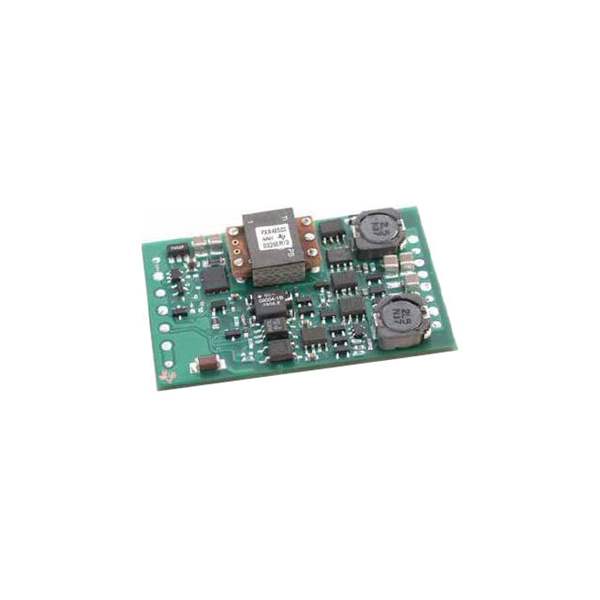

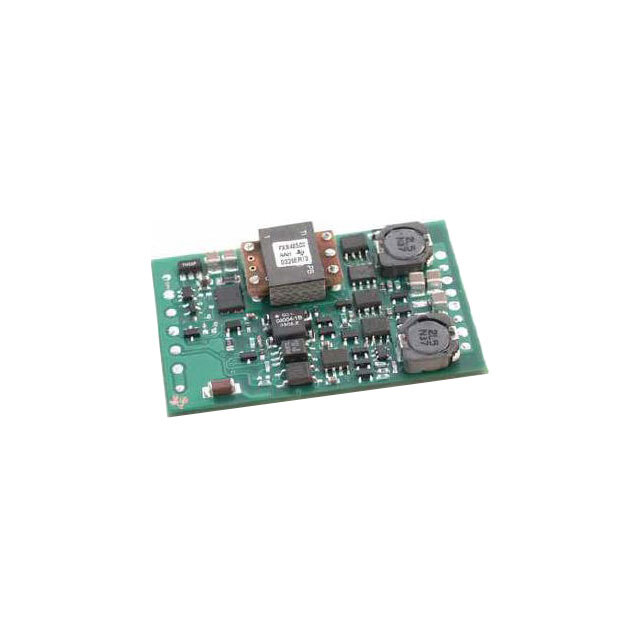

PTB48560AAS

Part No PTB48560AAS
Manufacturer Texas Instruments
Catalog DC DC Converters
Description DC DC CONVERTER 3.6-5.5V 30W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 3.6 ~ 5.5V
Current - Output (Max) 6A
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 84%
Mounting Type Surface Mount
Case / Package 11-SMD Module
Size / Dimension 2.04" L x 1.04" W x 0.40" H (51.8mm x 26.5mm x 10.3mm)
Package Bulk;Tray
Supply and Demand Status Shortage
Win Source Part Number 1537847-PTB48560AAS
Ultra Librarian 3D Model Ultra Librarian PTB48560AAS CAD Model
