Same model may have multiple batches, images only for reference.

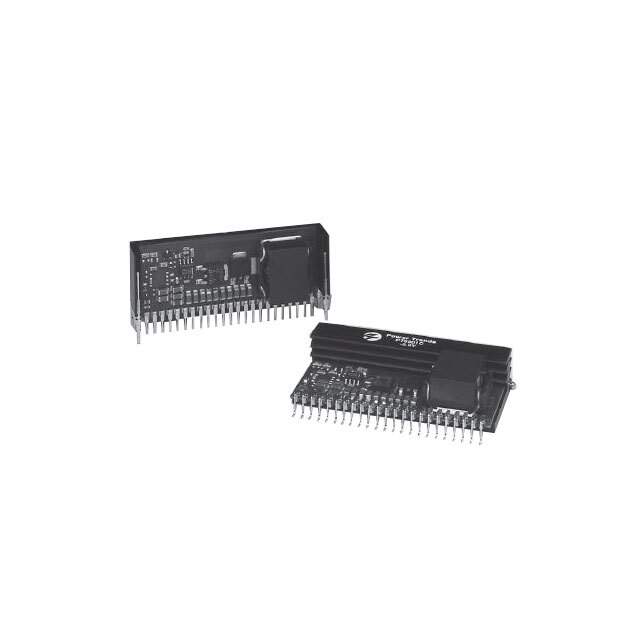

PT6905A Real Image
Same model may have multiple batches, images only for reference.

PT6905A

Part No PT6905A
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description REG +3.3V TO 5.2V 2.5A BB HORZ
Datasheet
PT6905A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PT6900
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 3.1V
Voltage - Input (Max) 3.6V
Voltage - Output 1 -5.2V
Current - Output (Max) 2.5A
Applications ITE (Commercial)
Mounting Style Through Hole, Right Angle
Package 23-SIP Module
Operating Temperature Range 0°C ~ 85°C
Efficiency 75%
Power (Watts) - Max 13W
Win Source Part Number 210318-PT6905A
Popularity Medium
Supply and Demand Status Limited
Quantity per package 72
Ultra Librarian 3D Model Ultra Librarian PT6905A CAD Model

Description

The PT6905A is a high-performance, integrated circuit device produced by Texas Instruments, an American technology company that designs and manufactures semiconductors and various integrated circuits.

  • Manufacturer: Texas Instruments
  • Output: 30-Amp, 5-Volt
  • Type: Adjustable/programmable ISR (Integrated Switching Regulator)
  • Features: High efficiency and excellent thermal performance
  • Functions: On/off inhibit, output voltage adjust (trim), differential remote sense, and output over-current protection
  • Efficiency: High efficiency through synchronous rectification and patented topology
  • Package: 27-pin space-grade power SIP (Single In-line Package)
  • Applications: Telecommunications, industrial, and medical equipment
