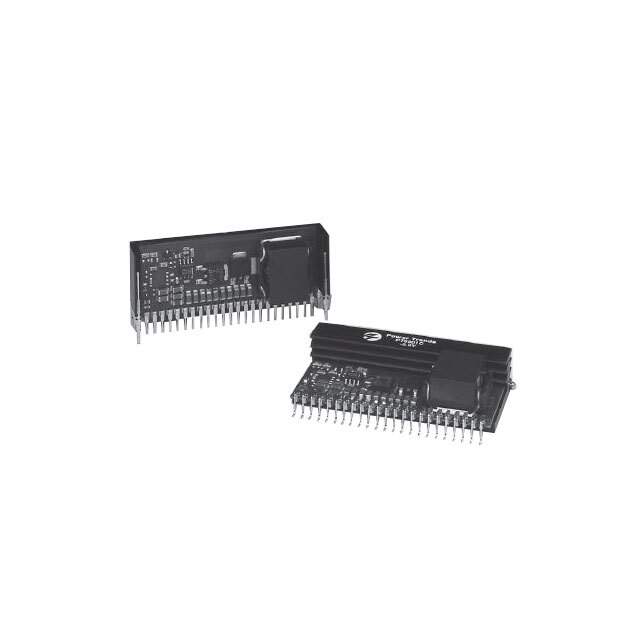

Same model may have multiple batches, images only for reference.

PT6902A

Get a Quote

Part No	PT6902A
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	REGULATOR +5V TO -5.2V BB HORZ
Datasheet	PT6902A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PT6900
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	-5.2V
Current - Output (Max)	3.5A
Applications	ITE (Commercial)
Mounting Style	Through Hole, Right Angle
Package	23-SIP Module
Operating Temperature Range	0°C ~ 85°C
Efficiency	77%
Power (Watts) - Max	18.2W
Win Source Part Number	210317-PT6902A
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	8
Ultra Librarian 3D Model	Ultra Librarian PT6902A CAD Model

Alternative Products

Description

The PT6902A from Texas Instruments is a highly efficient, integrated switch-mode regulator module designed to provide high-performance voltage regulation.

Manufacturer: Texas Instruments
Input: 3.3V
Output: 15A
Type: Adjustable/programmable step-down integrated switch mode regulator (ISM)
Input Voltage Range: 3.0V to 3.6V
Efficiency: Up to 90%
Output Voltage: Adjustable from 1.8V to 2.5V
Protection: Over-temperature and under-voltage lockout
Package: Space-saving, solderable copper case
Mounting: Surface mount
Applications: Telecommunications, computing, and industrial controls
