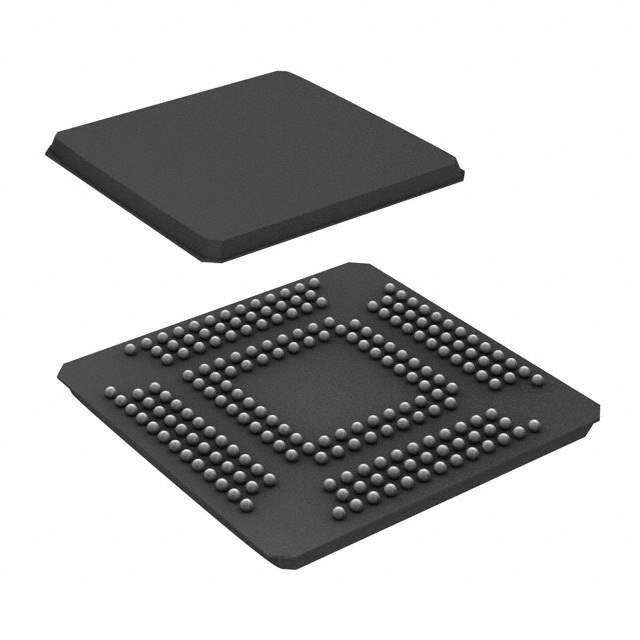

Product Overview: Texas Instruments PCI2050ZHK

The Texas Instruments PCI2050ZHK is a high-performance, 32-bit PCI-to-PCI bridge that is designed to extend the capabilities of PCI-based systems. This bridge chip is an essential component for system developers looking to expand or create a hierarchical bus structure within a PC or embedded system. With its ability to seamlessly interface between primary and secondary PCI buses, the PCI2050ZHK ensures efficient communication and data transfer between various subsystems.

Key Features

• PCI Interface: Compliant with PCI Local Bus Specification, Revision 2.2, the PCI2050ZHK offers a 32-bit, 33MHz performance on both primary and secondary buses, ensuring compatibility with a wide range of PCI devices.
• Dual PCI Bus: Features dual independent PCI bus interfaces which allow for flexible system design and increased bandwidth for connected devices.
• High-Speed Data Transfer: Supports a high data transfer rate, making it ideal for systems that require fast and efficient data movement, such as data acquisition, industrial control, and telecommunications.
• Low Power Consumption: Designed with power management in mind, the PCI2050ZHK offers a low-power operation mode, reducing overall system power consumption.
• Advanced Configuration: Comes with advanced configuration options through the PCI configuration space, allowing system integrators to optimize the performance for specific applications.

Applications

The PCI2050ZHK is suited for a variety of applications where multiple PCI devices need to be connected. It is particularly useful in:

• Embedded systems
• Networking and telecommunications equipment
• Industrial control systems
• Data acquisition systems
• Server and storage systems

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability, and the PCI2050ZHK is no exception. This product is built to meet the highest industry standards, ensuring long-term reliability and performance in critical applications.
