Product Overview: PCA9538DGVRG4 by Texas Instruments

The PCA9538DGVRG4 is a robust, low-voltage 8-bit I2C-bus GPIO (General Purpose Input/Output) expander designed and manufactured by Texas Instruments. This integrated circuit is specifically engineered to provide additional I/O ports for microcontrollers when the number of available pins on the microcontroller is insufficient. It is particularly useful for applications where board space is at a premium, and an increase in I/O is necessary without the need for a larger microcontroller.

Operating on a supply voltage range of 2.3V to 5.5V, the PCA9538DGVRG4 is suitable for a wide array of applications that require low power consumption and a broad power supply range. This makes it an ideal choice for battery-operated devices, portable electronics, and power-sensitive applications.

Key Features

• I2C Interface: The device supports a fast I2C-bus interface with speeds up to 400 kHz, making it compatible with most microcontrollers and ensuring quick communication between the I/O expander and the host controller.
• 8 Programmable I/O Pins: It comes with 8 programmable I/O pins that can be independently configured as an input or output, providing versatility for various design requirements.
• Interrupt Output: An interrupt output pin is available, which can be configured to alert the host microcontroller when an input state changes, thus reducing the need for continuous polling and saving power.
• Low Standby Current: The PCA9538DGVRG4 offers low standby current, further enhancing its suitability for power-sensitive applications.
• Polarity Inversion: Input port polarity can be inverted with the use of software, simplifying interface with devices that have opposite logic signals.

Applications

The PCA9538DGVRG4 is highly versatile and can be employed in various applications, including:

• Server motherboards
• Industrial control systems
• Portable electronics
• Extended keyboard inputs
• Home automation systems

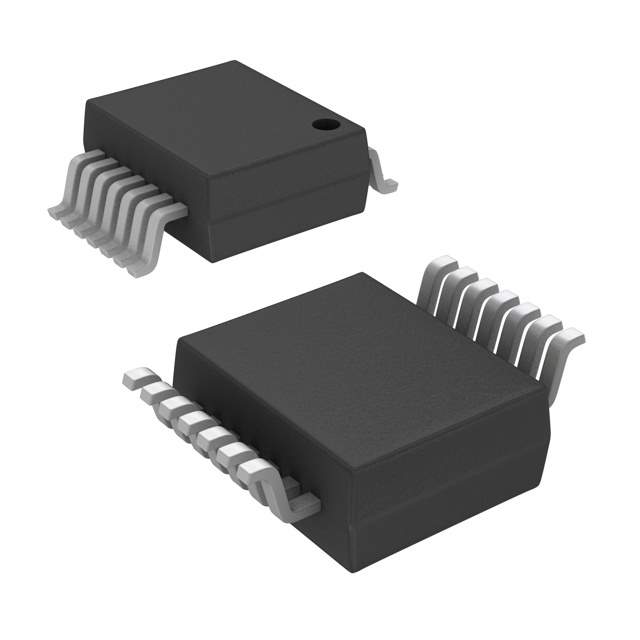

Enclosed in a small 16-pin TSSOP (Thin Shrink Small Outline Package), the PCA9538DGVRG4 is designed for space-saving on PCBs and is characterized by Texas Instruments for operation from -40°C to 85°C, making it suitable for industrial temperature ranges. Its robust design and flexible configuration options make it a go-to solution for expanding I/O capabilities in a wide range of electronic systems.
