The MUX508IPW is a state-of-the-art analog multiplexer from Texas Instruments, designed for precision and flexibility across a multitude of applications. This advanced component is an 8:1 single-ended analog multiplexer that operates on a single supply ranging from 4.5V to 36V, or dual supplies of ±4.5V to ±18V, providing engineers with a versatile option for various power environments.

Key Features

• Wide Range of Operating Voltages: The MUX508IPW functions effectively across a broad spectrum of voltages, making it suitable for diverse electronic systems.
• Low On-Resistance: With a low on-resistance of typically 175 Ω, this multiplexer ensures minimal signal distortion and voltage drop, maintaining signal integrity.
• Low Charge Injection: The device exhibits low charge injection, which minimizes the impact on the signal during channel switching, thus preserving the quality of the analog signal.
• Low Off-Leakage Current: Its low off-leakage current helps to prevent unintended signal corruption, ensuring more accurate readings and control.
• Break-Before-Make Switching: This feature prevents signal overlap during channel transitions, eliminating potential shorting and signal disturbances.

Applications

The MUX508IPW is ideal for an array of applications, including:

• Data Acquisition Systems
• Test Equipment
• Instrumentation
• Process Control
• Avionics

Package and Reliability

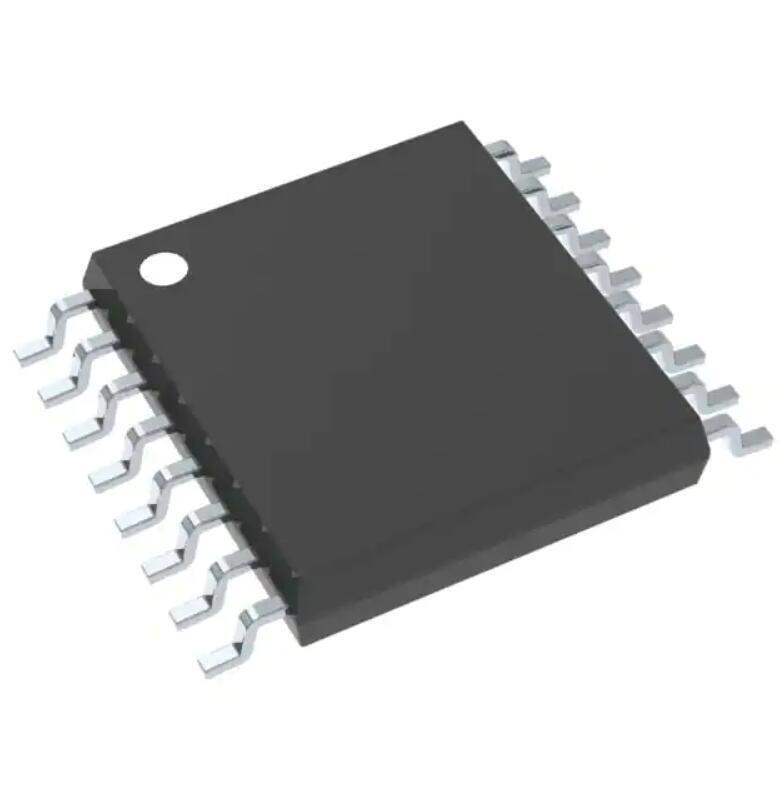

The device is offered in a compact TSSOP-16 (Thin Shrink Small Outline Package) which allows for efficient use of board space. Additionally, Texas Instruments' commitment to quality means the MUX508IPW is designed for robust performance and reliability, meeting the stringent requirements of industrial and commercial applications.

Conclusion

With its comprehensive set of features, the MUX508IPW from Texas Instruments is an exceptional choice for designers looking to incorporate a reliable, high-performance analog multiplexer into their electronic systems. Its versatility and precision make it a go-to component for a wide range of applications where signal integrity cannot be compromised.
