The MAX3243EIPWRG4 is a sophisticated interface IC developed by Texas Instruments, designed for bidirectional communication between a host and multiple peripheral devices. This transceiver is a part of the MAX3243E series and is particularly notable for its low-power consumption and high data transfer rates, making it an ideal choice for battery-powered applications such as laptops, PDAs, and other portable devices.

Key Features

• Supply Voltage: The device operates with a supply voltage range of 3.0V to 5.5V, which allows for compatibility with a variety of logic families and system power rails.
• High Data Rate: It supports data rates up to 250 kbps, ensuring efficient and fast data communication for serial port interfaces.
• Low-Power Operation: The MAX3243EIPWRG4 features a low-power shutdown mode that significantly reduces power consumption when not in active use, making it suitable for power-sensitive applications.
• Electrostatic Discharge (ESD) Protection: The device provides robust ESD protection for its transceiver inputs/outputs, enhancing the durability and reliability of end-products against static electricity and surges.
• Auto-Powerdown Feature: It includes an automatic power-down function that activates when no signal is present on the receiver inputs, further conserving energy.
• Multiple Drivers and Receivers: This transceiver includes three drivers and five receivers, allowing for multi-point communication over a single bus.

Applications

The MAX3243EIPWRG4 is versatile in its applications due to its high-speed communication capabilities and low-power features. It is commonly used in:

• Portable and battery-powered devices
• GPS systems
• Point-of-sale (POS) terminals
• Data logging and telemetry systems
• Industrial control and automation

Package and Quality

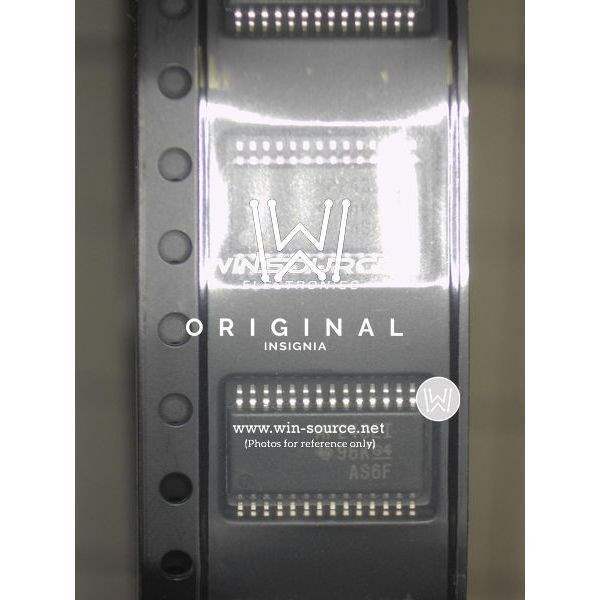

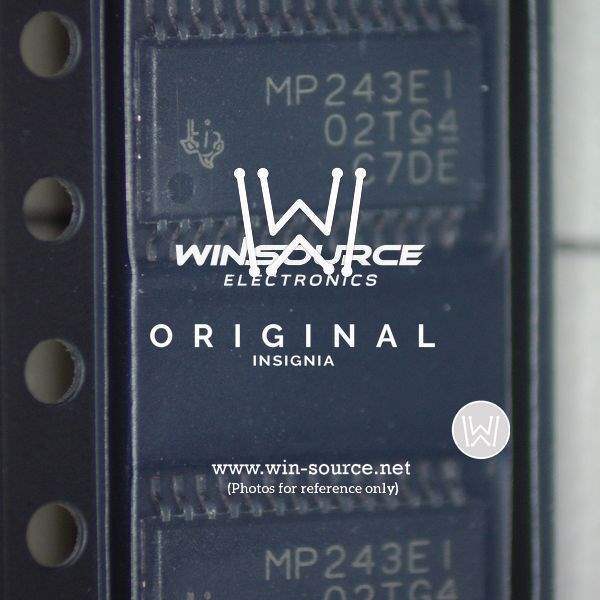

This transceiver is offered in a TSSOP (Thin Shrink Small Outline Package) with 28 pins, providing a compact footprint for space-constrained applications. The MAX3243EIPWRG4 is designed and manufactured to meet the high-quality standards of Texas Instruments, ensuring reliable performance in a wide range of operating conditions.

With its combination of features, the MAX3243EIPWRG4 from Texas Instruments stands out as a robust solution for serial communication in modern electronic systems.
