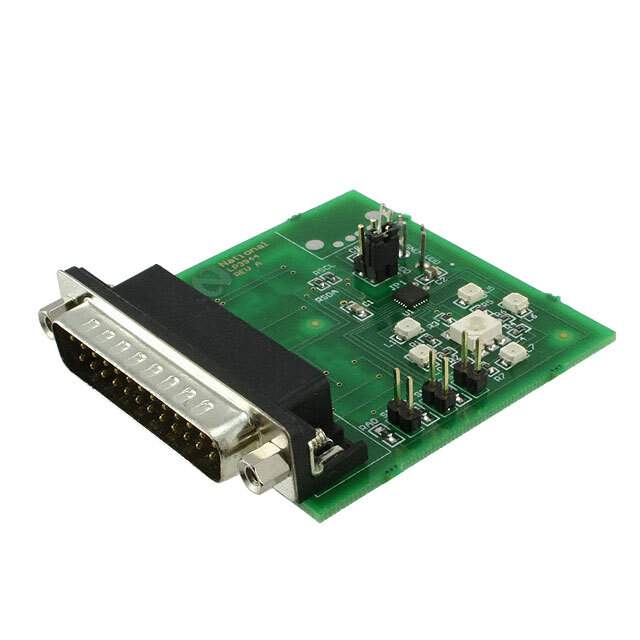

Overview of Texas Instruments LP3944ISQEV

The Texas Instruments LP3944ISQEV is a versatile, multi-channel LED driver designed to cater to a wide array of lighting applications. This integrated circuit is engineered to provide a flexible solution for driving multiple LEDs with consistent brightness and extended battery life, making it an ideal choice for portable devices, backlighting systems, and various other applications requiring multiple LED configurations.

Key Features

• Multi-Channel LED Driver: The LP3944ISQEV can control up to eight LEDs independently, allowing for complex lighting patterns and functions.
• Adjustable Output Current: It provides precise control over the LED current from 0 to 29.5 mA in 31 linear steps, enabling fine-tuning of brightness levels to suit specific requirements.
• Low Voltage Operation: The device operates from a power supply voltage as low as 2.7V up to 5.5V, which is suitable for battery-operated devices.
• Gradual Dimming: The LP3944ISQEV supports smooth dimming control, which helps in reducing visual flicker and enhancing user experience.
• Thermal Shutdown Protection: It includes an integrated thermal shutdown feature that prevents overheating and potential damage to the IC and connected LEDs.
• I²C Interface: The device is equipped with an I²C-compatible interface, allowing for easy communication and control through a microcontroller.

Applications

The LP3944ISQEV is suitable for a broad range of applications, including:

• Smartphone and tablet backlighting
• LED status indicators
• Portable media players
• GPS units
• Handheld gaming devices
• Small LCD displays

Package and Availability

The Texas Instruments LP3944ISQEV comes in a compact 24-pin WQFN package, offering a space-saving solution for designs where board real estate is at a premium. This product is available through Texas Instruments and authorized distributors, ensuring easy access for designers and manufacturers.

With its combination of multi-channel control, adjustable brightness, low-power operation, and ease of use, the LP3944ISQEV stands out as a comprehensive solution for LED driving requirements in modern electronic devices.
