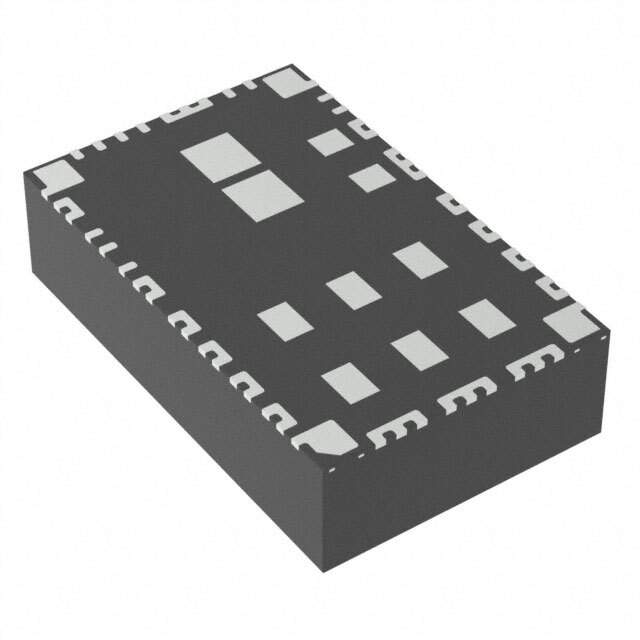

The LMZM33604RLXR from Texas Instruments is a highly efficient, compact, and reliable power module designed to meet the needs of a wide range of applications. This power solution integrates a DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This integration simplifies the design process for designers, reduces external component count, and minimizes the footprint on the PCB.

Key Features

• Wide Input Voltage Range: The module supports an input voltage range of 4V to 36V, making it versatile for various applications, from industrial to automotive systems.
• High Output Current: It can deliver up to 4A of continuous output current, which is suitable for powering high-performance processors, FPGAs, and other power-hungry components.
• Adjustable Output Voltage: The output voltage is adjustable from 0.6V to 12V, providing the flexibility to power a broad range of ICs.
• High Efficiency: With an integrated shielded inductor and advanced packaging, the module achieves high power efficiency, which helps in reducing thermal load and improving system reliability.
• Compact Size: The QFN package measures just 9mm x 15mm x 4.3mm, which is ideal for space-constrained applications.
• Thermal Performance: The LMZM33604RLXR is designed with excellent thermal performance in mind, ensuring stable operation over a wide temperature range.
• Protection Features: It includes over-temperature, over-current, and under-voltage lockout protections, enhancing the safety and durability of the end application.
• Easy to Use: The module requires minimal external components for operation, significantly simplifying the design and reducing time to market.

Applications

The LMZM33604RLXR is ideal for use in a variety of applications, including:

• Telecommunications Infrastructure
• Industrial Automation and Control Systems
• Automotive Infotainment and Telematics
• Enterprise Computing and Networking Equipment

In summary, the LMZM33604RLXR power module from Texas Instruments is a robust, efficient, and versatile solution that simplifies power design for a multitude of applications. Its integrated approach and comprehensive feature set make it an excellent choice for designers looking for a reliable power management solution.
