Product Overview: Texas Instruments LMZ30606RKGT

The LMZ30606RKGT from Texas Instruments is a high-performance, easy-to-use power module that combines a 6A DC-DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This advanced power solution is designed for applications requiring a wide input voltage range, high output current, and space-constrained power supplies.

Key Features

• Integrated Power Solution: Simplifies design and reduces external component count with an all-in-one power module.
• Wide Input Voltage Range: Operates from a 2.95V to 17V input, supporting a variety of power sources.
• High Output Current: Capable of delivering up to 6A of continuous output current to meet the demands of high-power applications.
• Adjustable Output Voltage: Provides an output voltage range from 0.8V to 6V, enabling versatility across different use cases.
• High Efficiency: Offers up to 95% efficiency, minimizing power loss and heat generation.

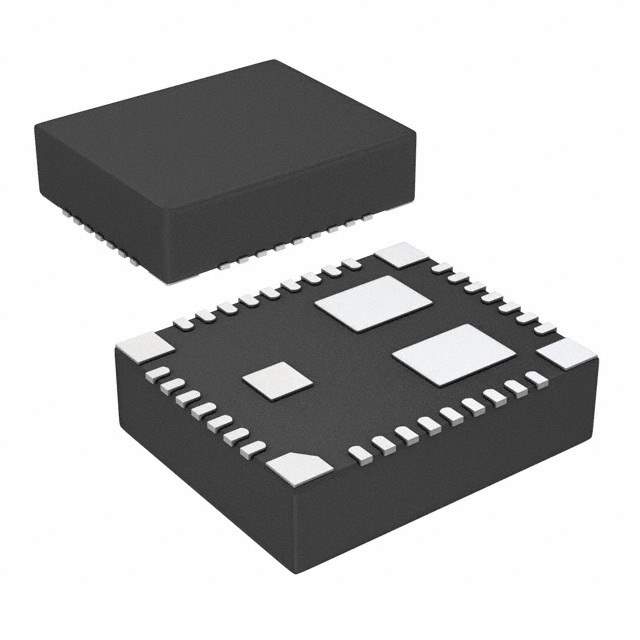

• Advanced Packaging: Utilizes a compact, 39-pin QFN package that is easy to solder onto a printed circuit board and is suitable for automated assembly processes.
• Thermal Performance: Enhanced thermal performance ensures reliability and longevity even under high power and temperature conditions.
• Protection Features: Includes over-temperature and over-current protection, enhancing the safety and durability of the module.

Applications

The LMZ30606RKGT is ideal for a wide range of applications, including:

• Telecommunications Infrastructure
• Networking Equipment
• Industrial Systems
• Enterprise Computing
• Storage Systems
• Field Programmable Gate Arrays (FPGAs)

With its robust feature set and compact form factor, the LMZ30606RKGT from Texas Instruments is an excellent choice for designers looking to streamline the power supply design process while ensuring high performance and reliability.
