Overview of Texas Instruments LMZ30602RKGR

The Texas Instruments LMZ30602RKGR is a high-performance, easy-to-use power solution that integrates a DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This power module is designed for space-constrained applications that require high power efficiency and reliability.

Key Features

• Integrated Power Solution: The LMZ30602RKGR combines a DC/DC converter with power MOSFETs and an inductor, simplifying the design process and reducing external component count.
• Adjustable Output Voltage: It offers an adjustable output voltage range from 0.8V to 3.6V, allowing flexibility across different applications and compatibility with a variety of loads.
• High Efficiency: With an efficiency of up to 95%, this module provides a high-power conversion rate, which is ideal for energy-sensitive designs.

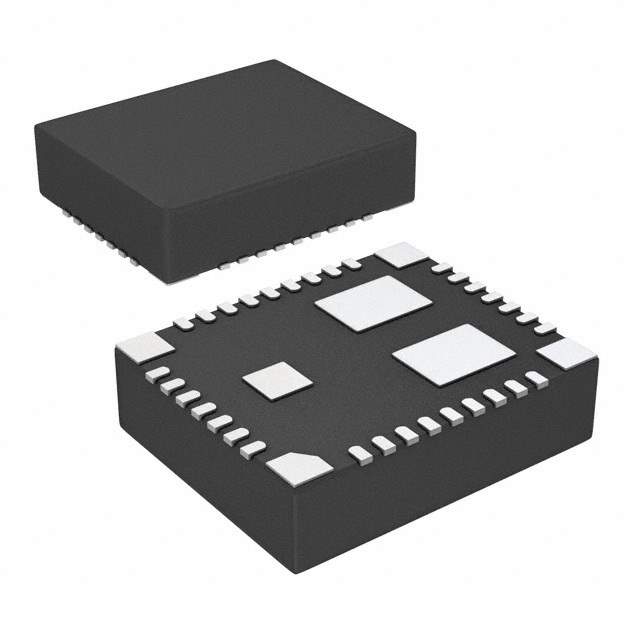

• Compact QFN Package: Encased in a compact 10mm x 10mm x 4.3mm QFN package, the LMZ30602RKGR is perfect for space-constrained applications.
• Output Current: It supports an output current of up to 2A, catering to a broad range of power requirements.
• Thermal Performance: The module's excellent thermal performance ensures reliability under varying operating conditions.

Applications

The LMZ30602RKGR is suitable for a wide range of applications, including but not limited to:

• Telecommunications Infrastructure
• Networking Equipment
• Industrial Systems
• Test and Measurement Devices
• Consumer Electronics

Technical Specifications

With its robust design and versatile features, the Texas Instruments LMZ30602RKGR is a top choice for designers looking for a reliable and efficient power management solution.
