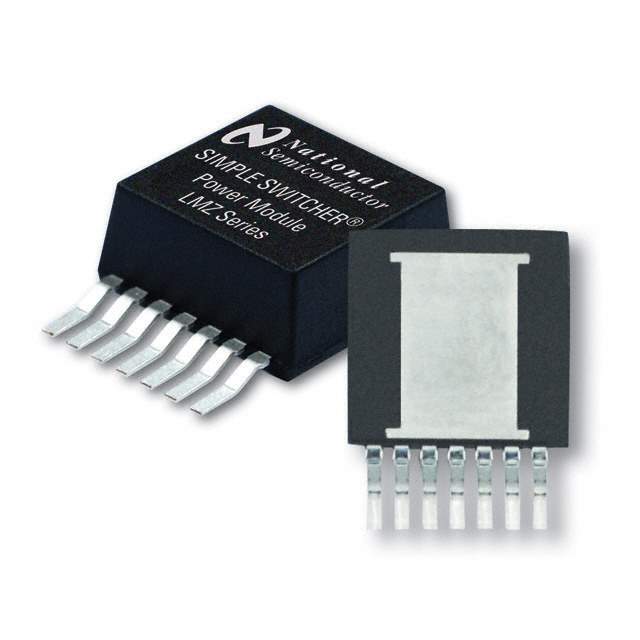

The LMZ22003TZE/NOPB is a high-performance, easy-to-use power module from Texas Instruments. This innovative product is designed to meet the needs of space-constrained and power-sensitive applications, providing a reliable and efficient power management solution. With its integrated inductor, the LMZ22003TZE/NOPB simplifies design and reduces external component count, making it an ideal choice for a wide range of industrial, telecommunications, and consumer electronics applications.

Key Features

• Output Voltage Range: This power module offers an adjustable output voltage range from 0.8V to 6V, which allows for flexible use across various devices and applications.
• High Efficiency: With an efficiency of up to 95%, the LMZ22003TZE/NOPB ensures minimal power loss and heat generation, contributing to the overall reliability and longevity of the end application.
• Output Current: Capable of delivering up to 3A of continuous output current, this module can power a wide array of components without the need for additional heat sinking or airflow.
• Wide Input Voltage Range: The input voltage range of 6V to 20V provides compatibility with various supply voltages, making it versatile for multiple scenarios.
• Integrated Shielded Inductor: The inclusion of a built-in shielded inductor not only saves board space but also reduces electromagnetic interference, enhancing performance and simplifying design.
• Thermal Performance: The innovative package design offers excellent thermal performance, ensuring the module operates within its temperature range even under full load conditions.
• Protection Features: The LMZ22003TZE/NOPB comes with a suite of protection features including over-temperature protection, under-voltage lockout, and over-current protection, which safeguard the module and the downstream circuitry from various fault conditions.

Applications

The Texas Instruments LMZ22003TZE/NOPB is suitable for a variety of applications, including but not limited to:

• Telecommunications Infrastructure
• Industrial Control Systems
• Networking Equipment
• Point of Load Conversions
• Consumer Electronics

In summary, the LMZ22003TZE/NOPB from Texas Instruments is a highly efficient, versatile, and robust power module that offers designers a compact and reliable power management solution. Its ease of use and integrated features make it an excellent choice for a multitude of applications where space and performance are critical.
