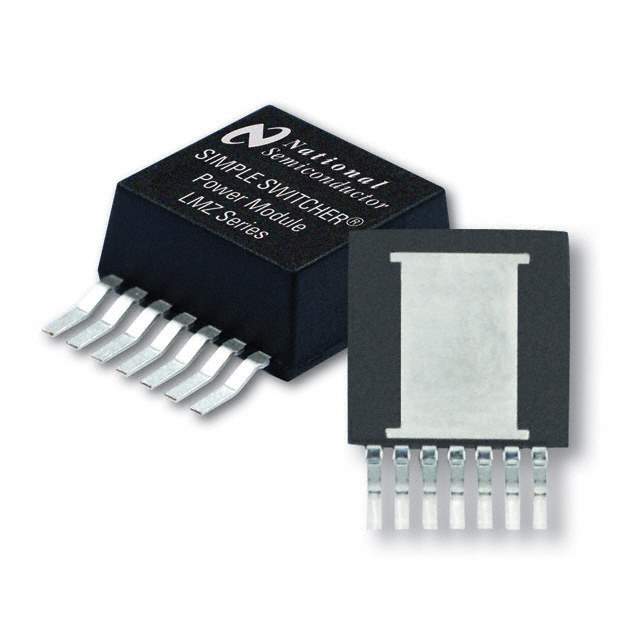

Product Overview: LMZ14201EXTTZ/NOPB

The LMZ14201EXTTZ/NOPB is a highly efficient, power management integrated circuit designed and manufactured by Texas Instruments. This robust device is part of TI's Simple Switcher® series, which is renowned for its ease of use and reliability in various applications. The LMZ14201EXTTZ/NOPB is a power module that integrates a step-down (buck) regulator with all the necessary components to provide a compact and efficient power management solution.

Key Features

• Input Voltage Range: The LMZ14201EXTTZ/NOPB operates with an input voltage range of 6V to 42V, making it suitable for a wide array of applications, including industrial, automotive, and telecommunications.
• Output Current: Capable of delivering up to 1A of continuous output current, this power module can power a diverse range of electronic devices and systems.
• High Efficiency: With an integrated shielded inductor, the device provides high efficiency and excellent EMI performance, ensuring minimal energy loss during power conversion.
• Adjustable Output Voltage: The output voltage is adjustable from 0.8V to 6V, allowing for versatile use in different circuit configurations.
• Thermal Performance: The device is designed to operate over an extended temperature range, ensuring reliability and performance in harsh environments.
• Protection Features: It includes built-in features such as over-temperature protection, under-voltage lockout, and over-current protection to safeguard the system from various fault conditions.

Applications

The LMZ14201EXTTZ/NOPB is suitable for a wide range of applications, including but not limited to:

• Industrial Control Systems
• Automotive Infotainment and Telematics
• Telecommunication Equipment
• Point of Load Power Supplies

Quality and Reliability

Texas Instruments is known for its commitment to quality and the LMZ14201EXTTZ/NOPB is no exception. It is designed to meet the rigorous standards of the industry, ensuring long-term reliability and performance. The 'NOPB' designation indicates that the product is lead-free and RoHS compliant, reflecting TI's dedication to environmental sustainability.
