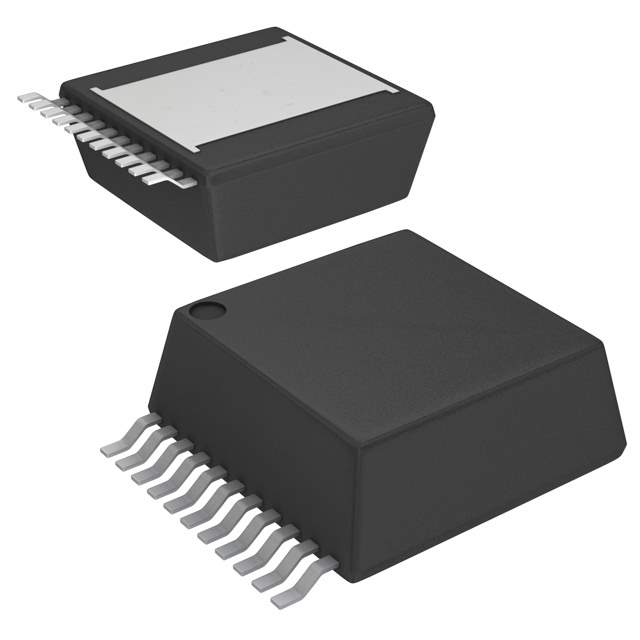

Product Overview: LMZ12010TZ/NOPB

The LMZ12010TZ/NOPB is a high-performance, easy-to-use power module from Texas Instruments, designed to meet the needs of a wide range of applications. This power solution integrates a DC/DC converter, inductor, and passives into a compact, low-profile package, simplifying the design process and accelerating product development.

Key Features

• Output Voltage Range: The module is capable of delivering an adjustable output voltage range from 0.8V to 6V, which makes it suitable for a variety of low-voltage applications, including FPGA, DSP, and ASIC power supplies.
• High Efficiency: With an efficiency of up to 95%, the LMZ12010TZ/NOPB ensures minimal power loss, making it an ideal solution for energy-sensitive designs.
• High Output Current: This module can deliver up to 10A of output current, catering to applications that require a substantial amount of power without the need for multiple converters.
• Wide Input Voltage Range: It operates over a wide input voltage range of 4.5V to 20V, providing flexibility for various supply voltages.
• Thermal Performance: The innovative package design enhances thermal performance and allows for operation over a wide temperature range.
• Integrated Shielding: The module includes integrated shielding to reduce radiated emissions, which is crucial for applications sensitive to electromagnetic interference (EMI).

Applications

• Telecommunications Infrastructure
• Networking Equipment
• Industrial Systems
• Test and Measurement Devices
• Servers and Storage Systems

Quality and Reliability

The LMZ12010TZ/NOPB is designed with reliability in mind, featuring over-temperature and over-current protection. It is constructed to meet the rigorous standards of Texas Instruments, ensuring high-quality performance in critical applications. The module's ease of use is further enhanced by its power-good output feature, which provides a simple way to monitor the health of the power supply.

Overall, the LMZ12010TZ/NOPB is a robust, efficient, and versatile power module that can help streamline the development of power systems across a wide range of electronic products.
