Product Overview: Texas Instruments LMX2615EVM-CVAL

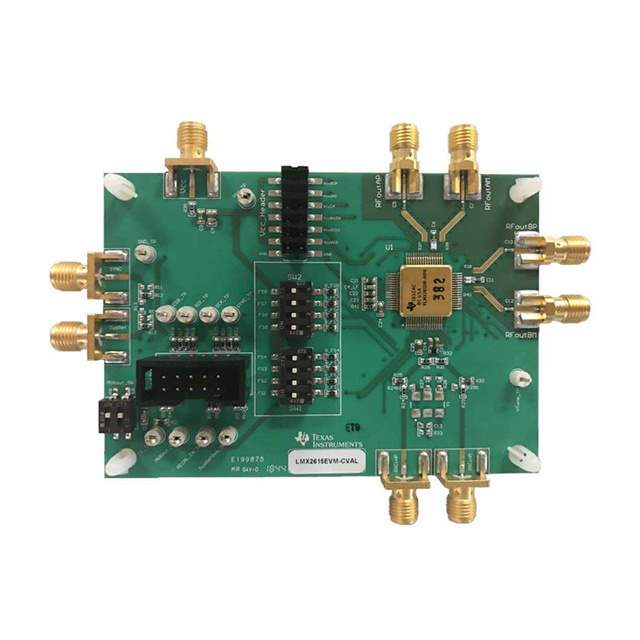

The LMX2615EVM-CVAL from Texas Instruments is a high-performance evaluation module (EVM) designed to demonstrate the capabilities of the LMX2615, a low-noise wideband frequency synthesizer. This EVM provides a robust platform for engineers and designers to explore the features and functionalities of the LMX2615, which includes a fully integrated wideband phase-locked loop (PLL) with voltage-controlled oscillator (VCO).

The LMX2615 is capable of generating frequencies from 10 MHz to 15 GHz, making it an ideal solution for applications such as wireless infrastructure, test and measurement equipment, satellite communications, and radar systems. Its exceptional phase noise performance and high level of integration help to reduce the bill of materials and simplify design complexity.

Key Features

• Frequency Range: 10 MHz to 15 GHz
• Low Phase Noise Performance
• Integrated VCO with < 200 fs RMS jitter
• PLLatinum™ Simplicity Design Tool Support
• USB Interface for Easy Connection to a PC
• Flexible Power Supply Options (3.3V to 5V)

The LMX2615EVM-CVAL includes a USB interface for easy connection to a PC, allowing users to control and program the device using the intuitive software GUI provided by Texas Instruments. This enables rapid prototyping and testing, facilitating an accelerated design process. The EVM is also supported by the PLLatinum™ Simplicity Design Tool, which assists in the optimization of loop filter, charge pump, and other critical parameters.

For power supply flexibility, the EVM is designed to operate with a range of voltages from 3.3V to 5V, accommodating various system requirements. The module is equipped with SMA connectors, providing a reliable interface for RF input, output, and reference signals.

Overall, the LMX2615EVM-CVAL is an invaluable tool for engineers seeking to harness the advanced capabilities of the LMX2615 synthesizer. Its combination of high performance, ease of use, and comprehensive software support ensures that it is a go-to solution for a wide array of high-frequency applications.
