Product Overview: Texas Instruments LMK00804BQWRGTRQ1

The LMK00804BQWRGTRQ1 is a highly integrated, low-skew, low-jitter, and high-performance clock buffer from Texas Instruments. Designed to meet stringent automotive and industrial requirements, this device is a part of the LMK family of clock distribution products that are renowned for their reliability and precision.

This clock buffer features four independently buffered outputs with 3.3V LVCMOS/LVTTL levels, providing a flexible solution for distributing a single clock input to multiple destinations. It is capable of handling clock frequencies up to 250MHz, making it suitable for a wide range of high-speed digital applications.

Key Features

• Low Skew: The LMK00804BQWRGTRQ1 offers incredibly low output-to-output skew, ensuring synchronous operation across multiple devices and systems.
• Low Jitter: With its low jitter performance, this clock buffer helps maintain signal integrity, which is crucial for high-speed communication and data transfer.
• Wide Operating Temperature Range: It operates over an extended temperature range of -40°C to +105°C, making it ideal for harsh automotive and industrial environments.
• Supply Voltage: Designed to operate with a single 3.3V ±10% supply voltage, this device is optimized for low-power operation.
• Output Enable Feature: The integrated output enable (OE) feature allows for the selective enabling or disabling of output channels, providing additional flexibility and power-saving opportunities.

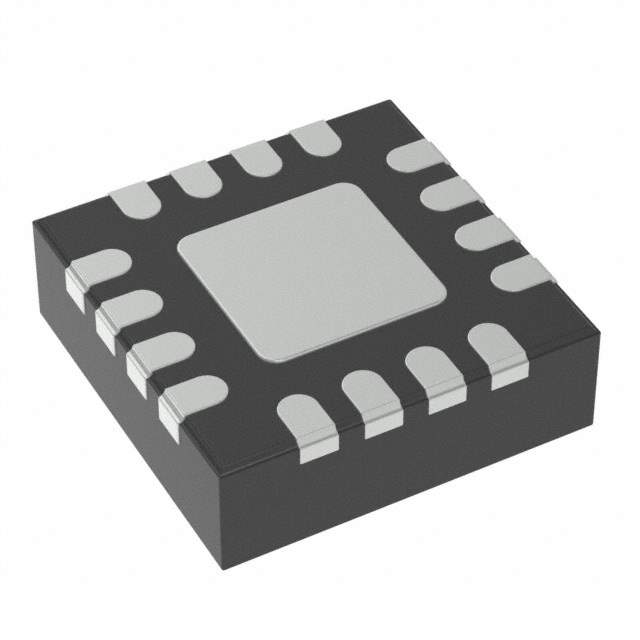

• Small Package Size: Packaged in a compact 16-pin WQFN with a 40-mm² pad, the LMK00804BQWRGTRQ1 saves valuable board space in space-constrained applications.

Applications

The LMK00804BQWRGTRQ1 is designed to serve a broad spectrum of applications, including automotive infotainment and telematics, advanced driver assistance systems (ADAS), industrial automation, and telecommunications infrastructure. Its robustness and performance make it an excellent choice for clock distribution in systems that require high reliability and precision timing.

With Texas Instruments' commitment to quality, the LMK00804BQWRGTRQ1 is manufactured to meet the highest standards, ensuring consistent performance and longevity in the most demanding conditions. Whether you're designing for automotive, industrial, or high-speed digital applications, this clock buffer provides a versatile and dependable solution for your timing requirements.
