Same model may have multiple batches, images only for reference.

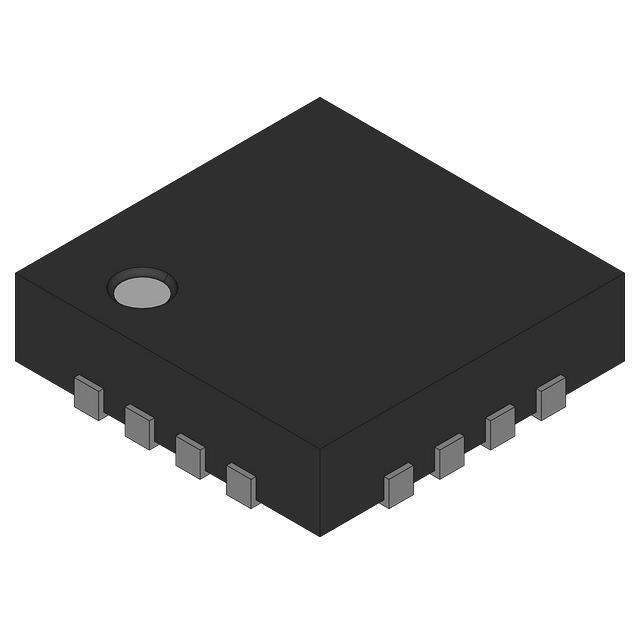

LMH6515SQ/NOPB Real Image
Same model may have multiple batches, images only for reference.

LMH6515SQ/NOPB

Part No LMH6515SQ/NOPB
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP VGA 600MHZ 16WQFN
Datasheet
LMH6515SQ/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Amplifier Type Variable Gain
Number of Circuits 1
Output Type Differential
-3db Bandwidth 600MHz
Operating Supply Current 107mA
Supply Voltage - Operating 4 V to 5.25 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 16-WQFN (4x4)
Win Source Part Number 135795-LMH6515SQ/NOPB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LMH6515SQ/NOPB CAD Model

Description

The is a high-performance, digitally controlled variable gain amplifier (DVGA) from Texas Instruments. It is designed for applications requiring high linearity, low noise, and precise signal amplification.

  • Bandwidth: 50 MHz to 1000 MHz
  • Gain Control: 50 dB (1 dB steps)
  • Supply Voltage: 5V to 12V
  • Power-Down/Up Control: Serial programming via SPI interface
  • Linearity: OIP3 of 40 dBm
  • Noise Figure: 6 dB
  • Package: 48-pin WQFN

Key applications include wireless infrastructure, test and measurement equipment, and defense electronics.
