The LMH2100TM/NOPB is a high-performance, low-power RF power detector from Texas Instruments. It is designed to provide precise power measurement of RF signals in various applications, such as cellular phones, wireless data cards, and RF power amplifier systems. The device is capable of detecting power levels from -30 dBm to +10 dBm with an impressive frequency range of 50 MHz to 6 GHz, which makes it extremely versatile for a wide range of RF applications.

Key Features

• Wide Frequency Range: The LMH2100TM/NOPB operates over a broad frequency range from 50 MHz to 6 GHz, accommodating a variety of RF bands and applications.
• High Accuracy: This power detector provides a highly accurate power measurement with a typical error of less than ±1 dB, ensuring reliable performance in critical applications.
• Low Power Consumption: Designed for battery-powered devices, the LMH2100TM/NOPB is optimized for low power consumption, which prolongs battery life in portable applications.
• Linear-in-dB Output: The device provides a linear-in-dB output that relates to the RF input power, simplifying the design of RF power monitoring systems.
• Temperature Compensated: The LMH2100TM/NOPB includes a built-in temperature compensation feature, which ensures consistent performance across a wide temperature range.

Applications

• Cellular handsets
• Wireless data cards
• RF power amplifier systems
• Wireless infrastructure
• ISM band applications

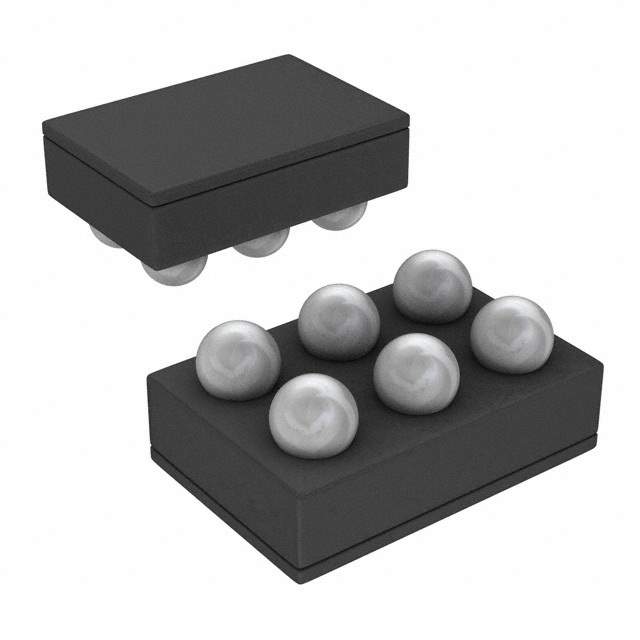

The LMH2100TM/NOPB comes in a compact, low-profile SMD package, which is ideal for space-constrained applications. It is part of Texas Instruments' NOPB (No Pb) product line, emphasizing the use of lead-free components in compliance with RoHS regulations. With its high dynamic range, accuracy, and low power consumption, the LMH2100TM/NOPB is an excellent choice for designers looking to integrate RF power detection into their systems.
