Same model may have multiple batches, images only for reference.

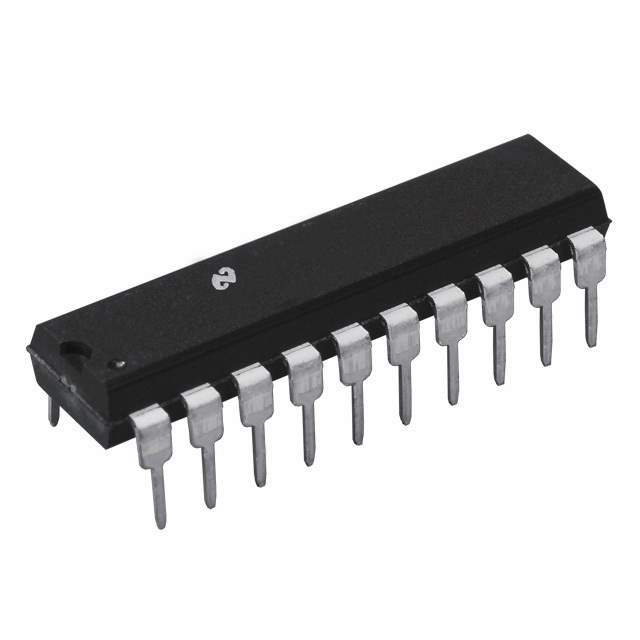

LMD18400N Real Image
Same model may have multiple batches, images only for reference.

LMD18400N

Part No LMD18400N
Manufacturer Texas Instruments
Catalog PMIC - Gate Drivers
Description IC DRIVER QUAD HI SIDE 20-DIP
Datasheet
LMD18400N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Driven Configuration High-Side
Channel Type Independent
Number of Drivers 4
Gate Type N-Channel MOSFET
Supply Voltage - Operating 7 V to 28 V
Logic Voltage - VIL, VIH 0.8V, 2V
Current - Peak Output (Source, Sink) 3A, 3A
Input Type Non-Inverting
Temperature Range - Operating -25°C to 150°C (TJ)
Mounting Through Hole
Case / Package 20-DIP
Win Source Part Number 082878-LMD18400N
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Power Management, Motor Drive & Control, Automotive
Quantity per package 18
Ultra Librarian 3D Model Ultra Librarian LMD18400N CAD Model

Description

The LMD18400N is a high-performance, integrated circuit product from Texas Instruments, designed for superior functionality and reliability.

  • Functionality: High-voltage, high-current quad high-side driver
  • Output Voltage Rating: 36V
  • Output Current Rating: 1.5A
  • Operating Temperature Range: -40°C to 85°C
  • Advanced Technology: DMOS output stage for high efficiency, minimal heat generation, and fast switching speed
  • Input Compatibility: TTL/DTL compatible
  • Device Protection: Thermal shutdown and input hysteresis for increased device protection
  • Packaging: 16-pin plastic DIP
