The LM5051MAEVAL/NOPB is a high-performance evaluation board designed by Texas Instruments to showcase the capabilities of the LM5051 high side OR-ing FET controller. This evaluation module provides an excellent platform for engineers and designers to explore the features and benefits of the LM5051 in a controlled environment.

Key Features

• High Side OR-ing FET Controller: The LM5051 integrates a charge pump to drive the gate of an external N-channel MOSFET above the supply voltage, ensuring low on-resistance and efficient OR-ing of multiple power sources.
• Versatile Voltage Range: The device operates over a wide input voltage range, making it suitable for a variety of applications, including telecom and server power systems.
• Integrated Fault Protection: The LM5051 includes features such as under-voltage lockout, over-voltage lockout, and thermal shutdown to protect the system from abnormal operating conditions.
• Power Good Indicator: A power good output signal is provided to indicate when the external MOSFET is fully enhanced and the power path is operational.
• Adjustable Turn-On and Turn-Off Thresholds: Designers can set thresholds to suit specific application requirements, ensuring flexibility and precision in power management.

Applications

The LM5051MAEVAL/NOPB is ideal for applications that require efficient power distribution and redundancy. It is commonly used in:

• Telecommunications equipment
• Server and networking power supplies
• Industrial power systems
• Redundant power architectures

Design and Layout

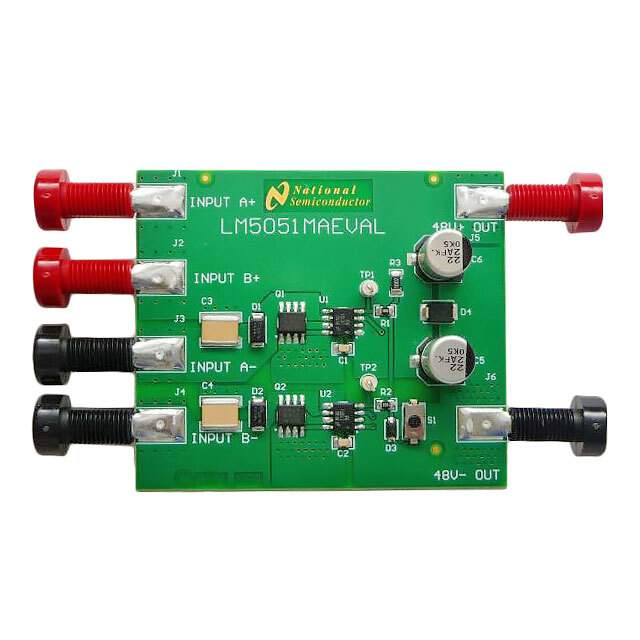

The evaluation board is designed with a user-friendly layout, providing easy access to all the critical test points and connectors. It includes a pre-installed LM5051 IC, a high-quality N-channel MOSFET, and all the necessary passive components to facilitate immediate testing and experimentation.

Support and Resources

Texas Instruments provides comprehensive support for the LM5051MAEVAL/NOPB, including detailed datasheets, application notes, and design guides. Users can also access TI's online community and technical support for any additional assistance required during evaluation and design.
