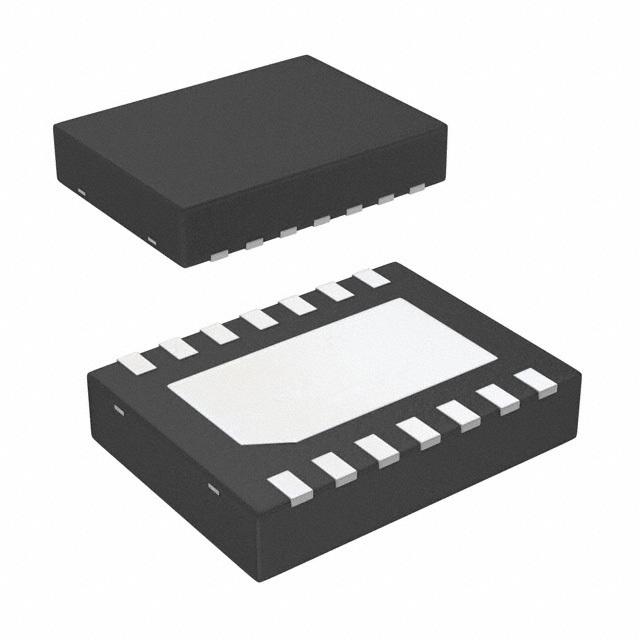

LM3570SD/NOPB

Name: LM3570SD/NOPB
Brand: Texas Instruments
SKU: 183663
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LM3570SD/NOPB
Manufacturer	Texas Instruments
Catalog	PMIC - LED Drivers
Description	IC LED DRIVER RGLTR DIM 14WSON
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Texas Instruments
Packaging	Reel - TR
Status	Obsolete(EOL)
Type	DC DC Regulator
Topology	Switched Capacitor (Charge Pump)
Internal Switch(s)	Yes
Number of Outputs	3
Operating Input Voltage(Min)	2.7V
Maximum Supply Voltage	5.5V
Output Voltage	4.3V
Channel Output Current	20mA
Frequency	500kHz
Dimming	PWM
Applications	Backlight
Temperature Range - Operating	-40°C to 85°C (TA)
Mounting	SMD (SMT)
Case / Package	14-WSON (4x3)
Win Source Part Number	002557-LM3570SD/NOPB
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian LM3570SD/NOPB CAD Model

Alternative Products

Description

The Texas Instruments LM3570SD/NOPB is a highly sophisticated and versatile device, designed to cater to a diverse range of electronic needs.

Voltage Regulator Type: High-efficiency
Efficiency: Up to 90%
Input Voltage Range: 2.7V to 5.5V
Output Current: Up to 800mA
Safety Feature: Thermal shutdown
Package: 10-pin WSON
