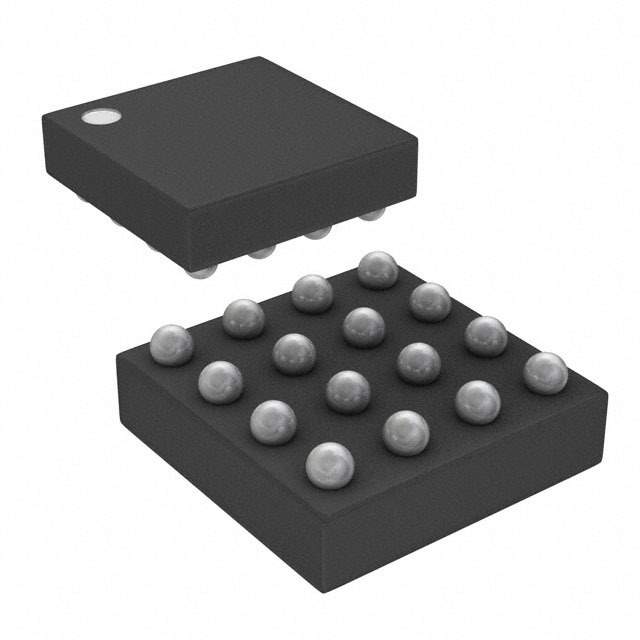

LM3559TLX/NOPB Real Image1 LM3559TLX/NOPB Real Image2
Same model may have multiple batches, images only for reference.
LM3559TLX/NOPB Real Image1 LM3559TLX/NOPB Real Image2
LM3559TLX/NOPB Real Image1 LM3559TLX/NOPB Real Image2
Same model may have multiple batches, images only for reference.

LM3559TLX/NOPB

Part No LM3559TLX/NOPB
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 16USMD
Datasheet
LM3559TLX/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 2
Operating Input Voltage(Min) 2.5V
Maximum Supply Voltage 5.5V
Output Voltage 5V
Channel Output Current 900mA (Flash)
Frequency 2MHz
Dimming I2C
Applications Camera Flash
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 16-uSMD
Win Source Part Number 019165-LM3559TLX/NOPB
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LM3559TLX/NOPB CAD Model

Description

The LM3559TLX/NOPB is a high-performance, advanced flash LED driver produced by Texas Instruments, a renowned global semiconductor company.

  • Supply Voltage Range: 2.7V to 5.5V.
  • High-Efficiency Boost Converter: Delivering up to 1.2A into a single LED.
  • Adjustable Output Power Levels: Can be easily programmed via an I2C-compatible interface.
  • Safety Features: Thermal regulation and short-circuit protection.
  • Small Form Factor: Available in a compact, 12-bump, 0.4mm pitch, DSBGA package.
  • Supports Strobe Mode and Torch Mode: Can be easily configured through the I2C-compatible interface.
