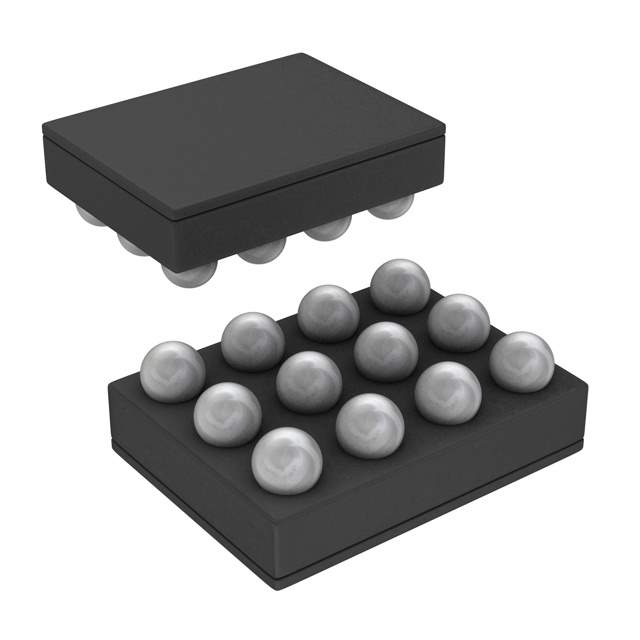

LM3530TMX-40/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM3530TMX-40/NOPB

Part No LM3530TMX-40/NOPB
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 12DSBGA
Datasheet
LM3530TMX-40/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 1
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 5.5V
Output Voltage 40V
Channel Output Current 30mA
Frequency 500kHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 12-DSBGA
Win Source Part Number 071261-LM3530TMX-40/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM3530TMX-40/NOPB CAD Model

Description

The LM3530TMX-40/NOPB is a high-end, advanced product from the reputable and globally recognized manufacturer, Texas Instruments.

  • Type: White LED driver with dynamic backlight control and I2C compatible interface.
  • Ambient Light Sensor Interface: Enables automatic screen brightness adjustment.
  • Dynamic Backlight Control: Allows for LED brightness adjustment through PWM and content-adjustable backlighting.
  • Input Voltage Range: 2.7V to 5.5V
  • Drive Current: Drives up to 29.5mA over 11 logarithmic steps.
  • I2C Addresses: Three selectable I2C addresses.
  • Safety Features: Over-voltage protection and a thermal shutdown feature.
  • Package: Tiny 12-bump lead-free DSBGA package.
