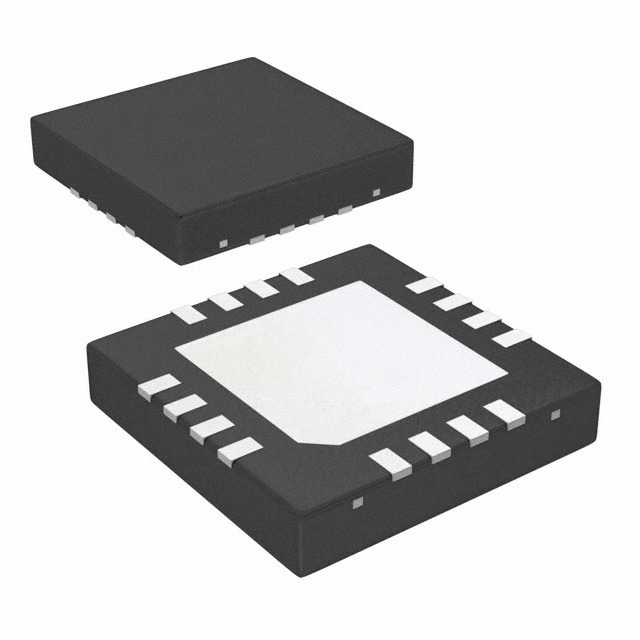

LM3503SQ-16 Texas Instruments
Same model may have multiple batches, images only for reference.

LM3503SQ-16

Part No LM3503SQ-16
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description Dual-Display Constant Current LED Driver with Analog Brightness Control | IC LED DRIVER RGLTR DIM 16WQFN
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel
Status Obsolete
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 2
Voltage - Supply (Minimum) 2.5V
Voltage - Supply (Maximum) 5.5V
Voltage - Output 16V
Current - Output / Channel 400mA (Switch)
Frequency 1MHz
Dimming Analog, PWM
Applications Backlight
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 16-WFQFN Exposed Pad
Supplier Device Package 16-WQFN (4x4)
Family Part Number LM3503
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1198962-LM3503SQ-16
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM3503SQ-16 CAD Model

Description

The LM3503SQ-16 is a Step-Up (Boost) Topology DC-DC Regulator with two outputs manufactured by Texas Instruments.

  • Manufacturer: Texas Instruments
  • Topology: Step-Up (Boost)
  • Voltage Output: 16V
  • Current Output: 400mA (Switch)
  • Frequency: 1MHz
  • Package: 16-WQFN (4x4)
  • Dimming Features: Analog and PWM
  • Application: Backlight
  • Switch: Internal
  • Availability: Open market
