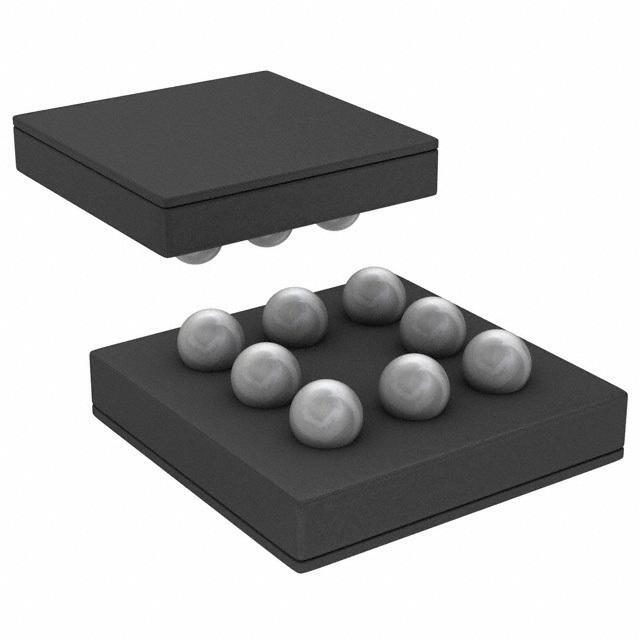

LM3501TLX-16 Texas Instruments
Same model may have multiple batches, images only for reference.

LM3501TLX-16

Part No LM3501TLX-16
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR 400MA 8USMD
Datasheet
LM3501TLX-16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 1
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 7V
Output Voltage 16V
Channel Output Current 400mA (Switch)
Frequency 1MHz
Applications Backlight
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 8-uSMD
Win Source Part Number 082727-LM3501TLX-16
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM3501TLX-16 CAD Model

Description

The LM3501TLX-16 is a high-quality, high-performance product from Texas Instruments, a renowned global semiconductor design and manufacturing company.

  • Type: High-output current, constant-frequency, and adjustable output voltage LED driver
  • LEDs Driven: Up to 10 white LEDs in series
  • Efficiency: Up to 87%
  • Package: Compact, space-saving micro SMD package
