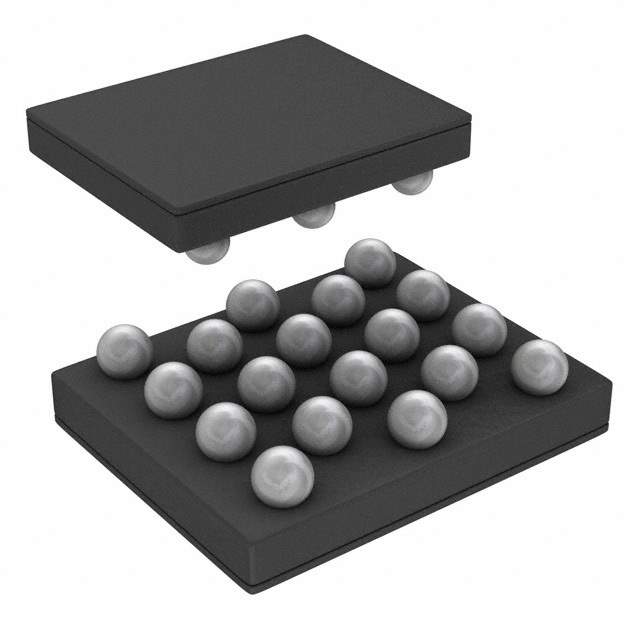

LM2796TLX Real Image
Same model may have multiple batches, images only for reference.

LM2796TLX

Part No LM2796TLX
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 18TUSMD
Datasheet
LM2796TLX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 7
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 5.5V
Channel Output Current 20mA
Frequency 500kHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -30°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 18-TuSMD
Win Source Part Number 071139-LM2796TLX
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LM2796TLX CAD Model

Description

The LM2796TLX is an advanced and highly efficient product from Texas Instruments, a renowned name in the world of semiconductors and technology.

  • Type: White LED driver and organic LED (OLED) display driver
  • Converter: High-efficiency boost converter with 1.2 MHz fixed-frequency switching mode
  • Current Sinks: Two regulated current sinks (independently dimmable and turn-on/off)
  • Feature: Adaptive mode switching (optimizes efficiency)
  • Feature: Built-in soft-start function (limits inrush current)
  • Package: Tiny 14-pin micro SMD
  • Output Current: Up to 20 mA per channel
  • Input Voltage Range: 2.7V to 5.5V
