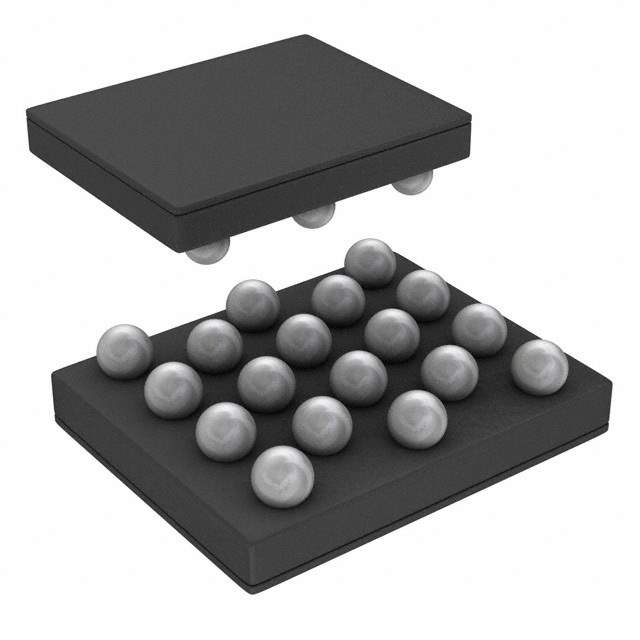

LM2796TLX/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM2796TLX/NOPB

Part No LM2796TLX/NOPB
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 18TUSMD
Datasheet
LM2796TLX/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 7
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 5.5V
Channel Output Current 20mA
Frequency 500kHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -30°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 18-TuSMD
Win Source Part Number 071140-LM2796TLX/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM2796TLX/NOPB CAD Model

Description

The LM2796TLX/NOPB is a high-performance product from Texas Instruments, a renowned global semiconductor design and manufacturing company.

  • Type: White LED driver and organic LED (OLED) display driver
  • Converter: Integrated 1.8A boost converter
  • Current Sinks: Two regulated current sinks
  • LED Support: Up to 11 series-connected LEDs (for backlight) or an OLED display
  • Operation: High-efficiency operation with high switching frequency
  • Interface: I2C-compatible interface (for adjusting LED current)
  • Protection: Built-in over-voltage protection, thermal shutdown protection
  • Shutdown Mode: Low-power shutdown mode
