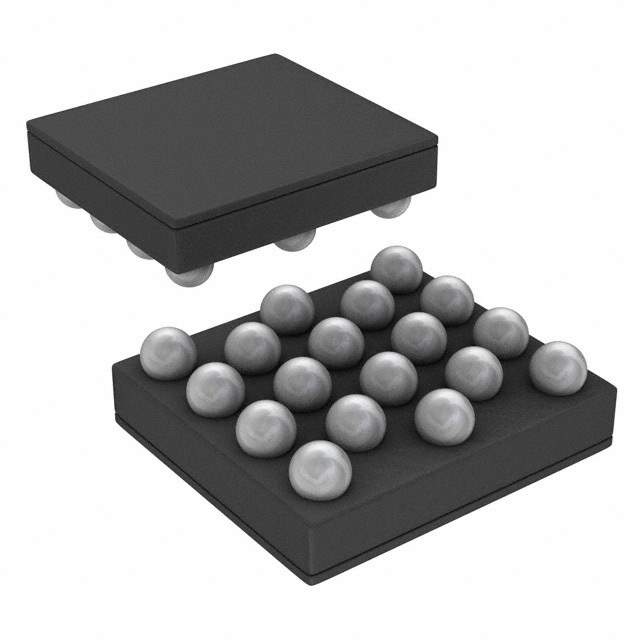

LM2755TMX Real Image
Same model may have multiple batches, images only for reference.

LM2755TMX

Part No LM2755TMX
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 18USMD
Datasheet
LM2755TMX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 3
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 5.5V
Channel Output Current 30mA
Frequency 1.25MHz
Dimming I2C
Applications Backlight
Temperature Range - Operating -30°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 18-uSMD
Win Source Part Number 071129-LM2755TMX
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LM2755TMX CAD Model

Description

The LM2755TMX is a cutting-edge, high-efficiency, charge pump-based LED driver product from Texas Instruments, a globally recognized leader in the semiconductor industry.

  • LEDs Driven: Up to four LEDs in parallel
  • Operation: Constant current to each LED
  • Efficiency: Up to 90%
  • Interface: I2C compatible
  • Operating Current: Very low
  • Operation: Low-noise
  • Protection: Thermal shutdown
  • Package: Tiny 12-bump micro SMD package
  • Compliance: RoHS compliant
  • Operating Temperature Range: -30 to 85 degrees Celsius
