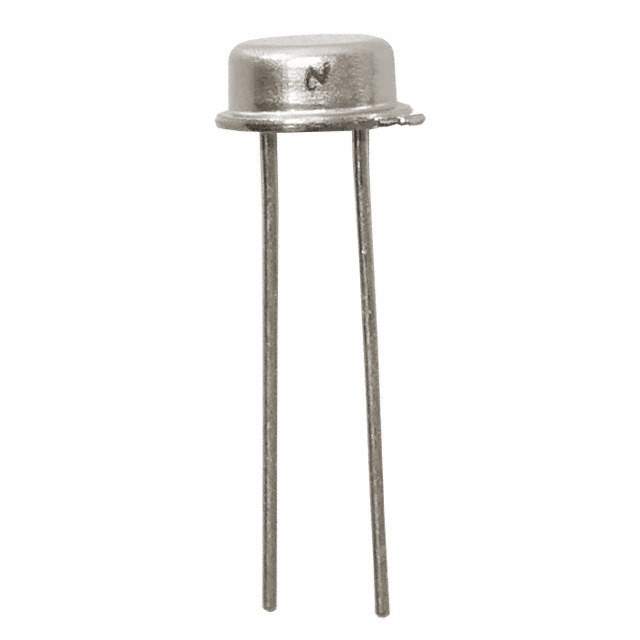

LM185BYH-1.2/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM185BYH-1.2/NOPB

Part No LM185BYH-1.2/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Reference
Description IC VREF SHUNT 1.235V TO46-2
Datasheet
LM185BYH-1.2/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Reference Type Shunt
Output Type Fixed
Nominal Output Voltage (Min/Fixed) 1.235V
Output Current 20mA
Tolerance ±1%
Temperature Coefficient 50ppm/°C
Noise - 10Hz to 10kHz 60μVrms
Current - Cathode 10μA
Temperature Range - Operating -55°C to 125°C (TA)
Mounting Through Hole
Case / Package TO-46-2, Metal Can
Win Source Part Number 002545-LM185BYH-1.2/NOPB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM185BYH-1.2/NOPB CAD Model

Description

Product LM185BYH-1.2/NOPB from Texas Instruments is a high-quality, precision voltage reference device that offers a fixed voltage output of 1.2V.

  • Voltage Output: 1.2V
  • Temperature Range: -55 degrees Celsius to 125 degrees Celsius
  • Package: TO-46
  • Output Current: 10mA (maximum)
  • Output Noise: Low
  • Accuracy: Initial accuracy of 1%, Temperature coefficient of 30ppm/°C
  • Compliance: RoHS compliant and lead-free
