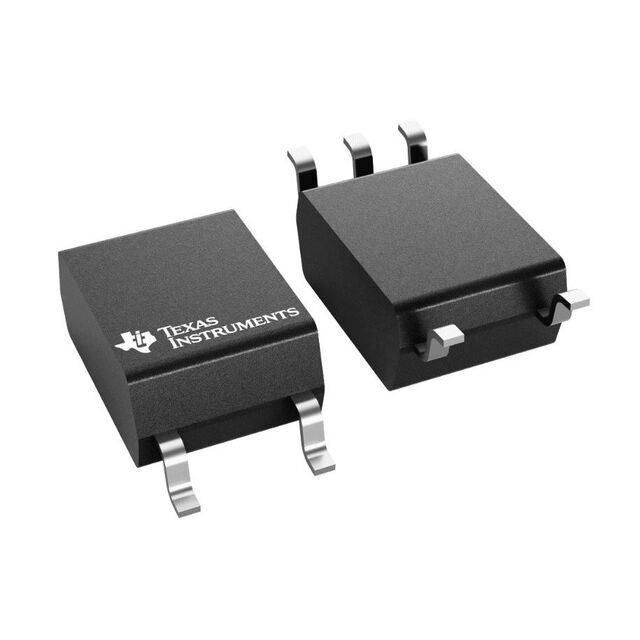

Same model may have multiple batches, images only for reference.
ISOM8710DFFR Texas Instruments – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ISOM8710DFFR

Part No ISOM8710DFFR
Manufacturer Texas Instruments
Catalog Optoisolators - Logic Output
Description DC INPUT LOGIC OUTPUT SINGLE-C
Datasheet
ISOM8710DFFR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category IsolatorsOptocouplers, OptoisolatorsLogic Output Optoisolators
Manufacturer Texas Instruments
Part Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 3750Vrms
Common Mode Transient Immunity (Min) 125kV/μs
Input Type DC
Output Type Push-Pull, Totem Pole
Current - Output / Channel 15 mA
Data Rate 25Mbps
Propagation Delay tpLH / tpHL (Max) 54ns, 54ns
Rise / Fall Time (Typ) 10ns, 10ns (Max)
Voltage - Forward (Vf) (Typ) 1.5V
Current - DC Forward (If) (Max) 25mA
Voltage - Supply 2.7V ~ 5.5V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 5-SMD, Gull Wing
Supplier Device Package 5-SOIC
Ultra Librarian 3D Model Ultra Librarian ISOM8710DFFR CAD Model
