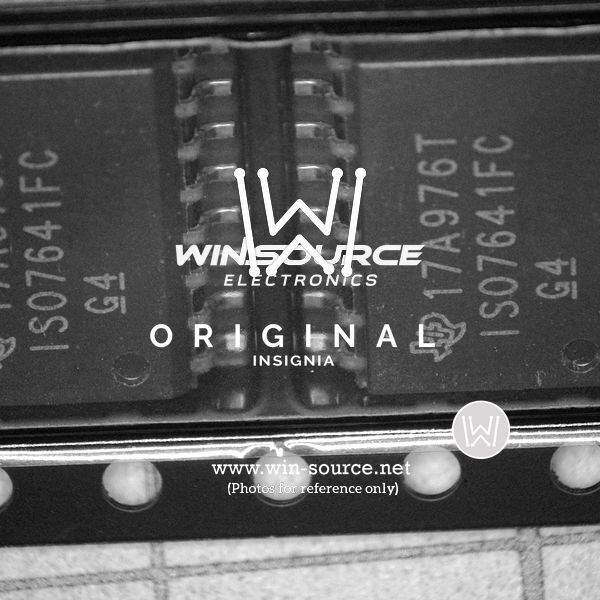

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 4
Inputs - Side 1/Side 2 3/1
Channel Type Unidirectional
Isolation Voltage 2500Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Data Rate 25Mbps
Propagation Delay tpLH / tpHL (Max) 28ns, 28ns
Pulse Width Distortion (Max) 3ns
Rise and Fall Time 2.8ns, 2.9ns
Supply Voltage - Operating 3 V to 5.5 V
Temperature Range - Operating -40°C to 125°C
Case / Package 16-SOIC
Win Source Part Number 002084-ISO7641FCDWR
Family Name ISO7641FC
Introduction Date August 01, 2011
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2028
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ISO7641FCDWR CAD Model

Description

The ISO7641FCDWR from Texas Instruments is a high-performance, robust integrated circuit that is designed to offer superior isolation and signal transmission capabilities.

  • Channels: Quad-channel configuration
  • Insulation: Reinforced insulation
  • Isolation Voltage: 5000 Vrms
  • Data Rate: Up to 25 Mbps
  • Propagation Delay: Low
  • Package: Compact, surface-mount package
  • Operating Temperature Range: Wide
