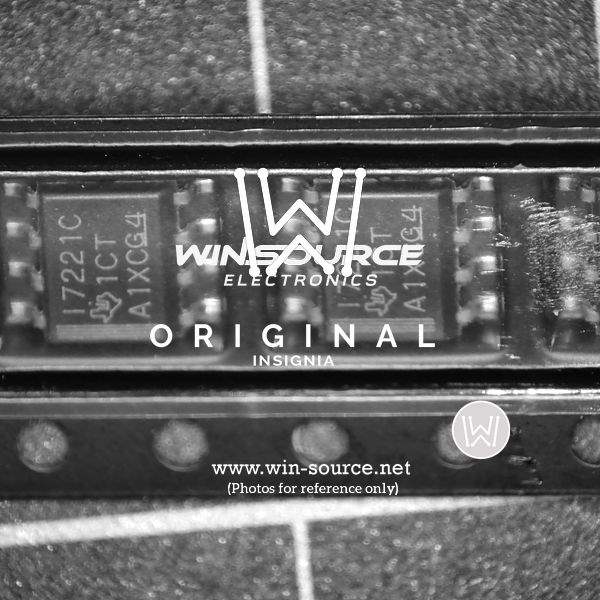

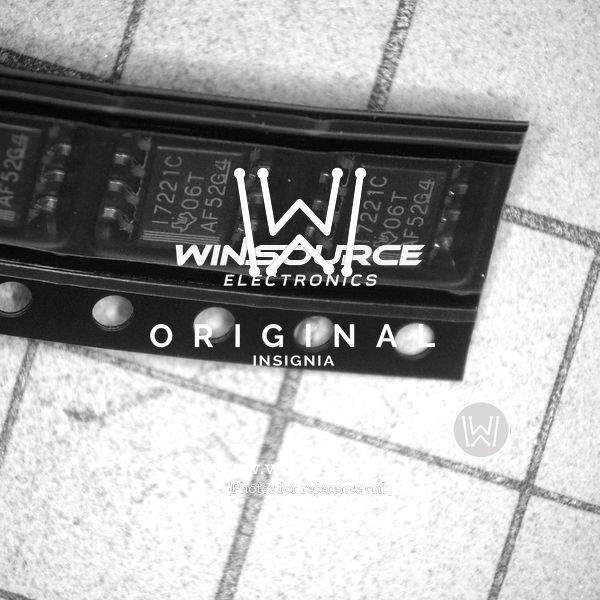

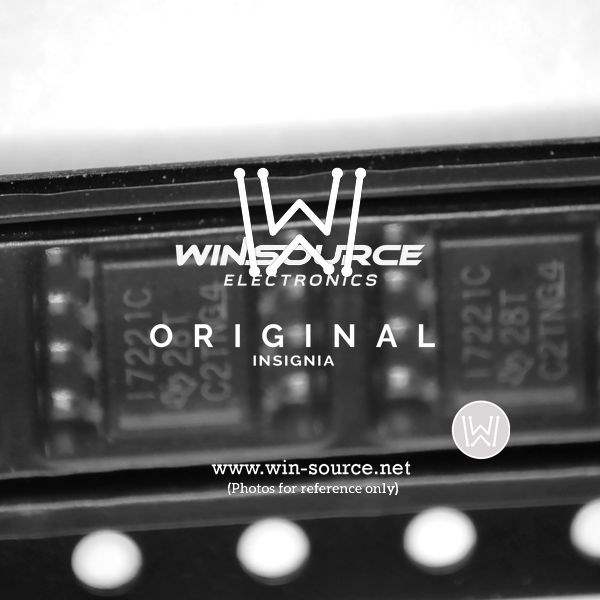

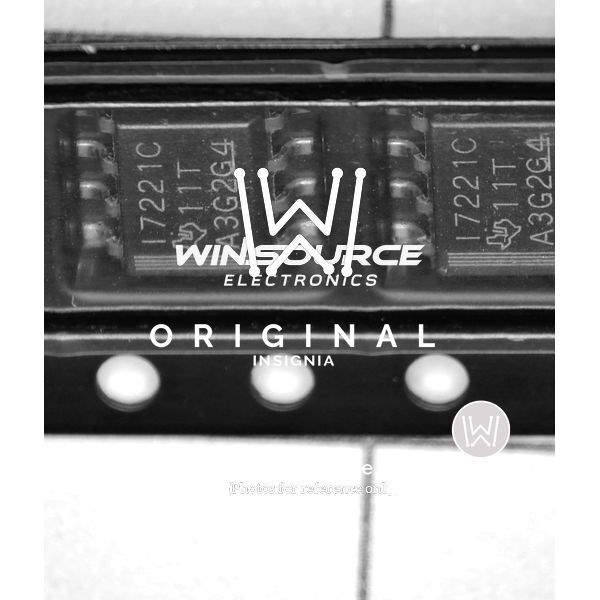

ISO7221CDR Real Image ISO7221CDR real image568 ISO7221CDR real image569 ISO7221CDR real image570 ISO7221CDR Real Image1 ISO7221CDR Real Image2 ISO7221CDR Real Image3 ISO7221CDR Real Image4
Same model may have multiple batches, images only for reference.
ISO7221CDR Real Image ISO7221CDR real image568 ISO7221CDR real image569 ISO7221CDR real image570 ISO7221CDR Real Image1 ISO7221CDR Real Image2 ISO7221CDR Real Image3 ISO7221CDR Real Image4
ISO7221CDR Real Image ISO7221CDR real image568 ISO7221CDR real image569 ISO7221CDR real image570 ISO7221CDR Real Image1 ISO7221CDR Real Image2 ISO7221CDR Real Image3 ISO7221CDR Real Image4
Same model may have multiple batches, images only for reference.

ISO7221CDR

Part No ISO7221CDR
Manufacturer Texas Instruments
Catalog Digital Isolators
Description DGTL ISO 2.5KV GEN PURP 8SOIC / Digital Isolator CMOS 2-CH 25Mbps 8-Pin SOIC T/R
Datasheet
ISO7221CDR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 2
Inputs - Side 1/Side 2 1/1
Channel Type Unidirectional
Isolation Voltage 2500Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Data Rate 25Mbps
Propagation Delay tpLH / tpHL (Max) 42ns, 42ns
Pulse Width Distortion (Max) 2ns
Rise and Fall Time 1ns, 1ns
Supply Voltage - Operating 2.8 V to 5.5 V
Temperature Range - Operating -40°C to 125°C
Case / Package 8-SOIC
Win Source Part Number 002049-ISO7221CDR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Sensing & Instrumentation, Test & Measurement, Signal Processing, Industrial, Thermal Management
Family Name ISO7221C
Introduction Date May 01, 2007
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian ISO7221CDR CAD Model

Description

The ISO7221CDR is a high-performance, digital isolator product manufactured by the globally renowned company, Texas Instruments.

  • Channels: Dual-channel
  • Package: 16-pin SOIC
  • Data Rate: 1 Mbps
  • Power Supply Range: 3.3V to 5.5V
  • Isolation: High electromagnetic immunity and low emissions
  • Isolation: Minimum of 3750 Vrms isolation per UL1577
  • Temperature Range: -40°C to +85°C
