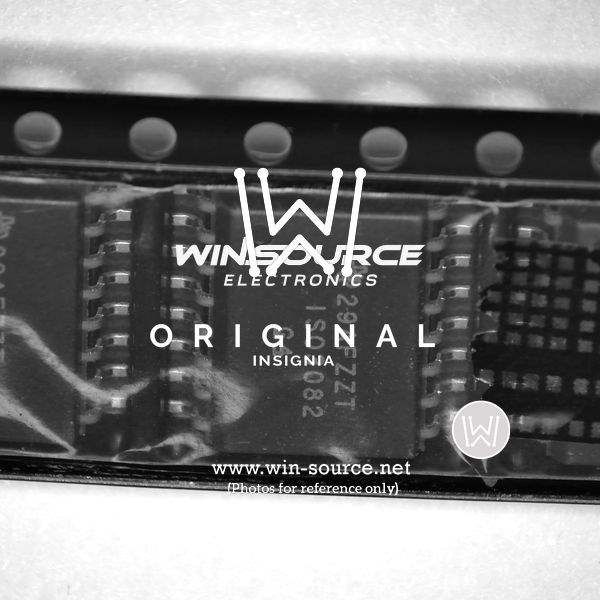

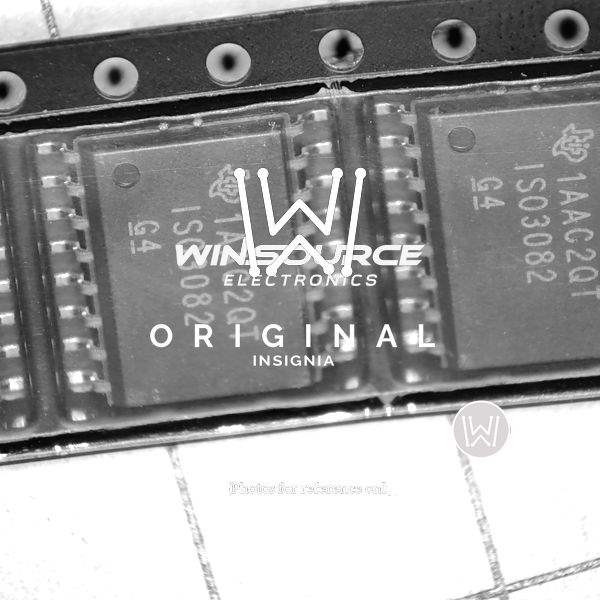

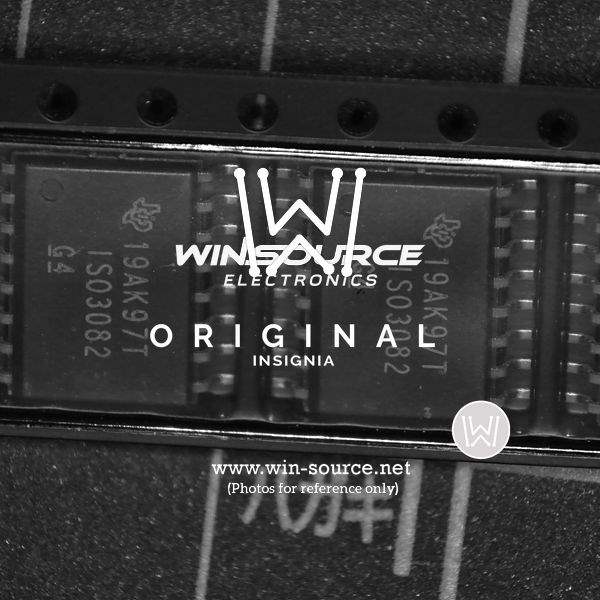

The ISO3082DW from Texas Instruments is a high-performance, isolated full-duplex RS-485 transceiver designed to provide robust communication in noisy industrial environments. This device is part of the ISO308x family and is housed in a 16-pin SOIC wide-body package, offering a compact solution for applications requiring high isolation voltage, electromagnetic interference (EMI) protection, and reliable data transmission.

Key Features

• Isolation: The ISO3082DW offers 2500 V<sub>RMS for 1 minute per UL and VDE, ensuring safety and preventing ground loops in harsh industrial settings.
• Signaling Rate: Capable of data rates up to 20 Mbps, this transceiver can handle high-speed data communication with ease.
• Bus-Pin ESD Protection: Enhanced ESD protection up to ±16 kV HBM (Human Body Model) on the bus-pin, providing robustness against electrostatic discharges.
• Integrated Features: Includes a thermal shutdown and current-limiting features to protect against fault conditions.
• Wide Temperate Range: Operates reliably over an industrial temperature range of -40°C to +85°C, suitable for extreme environments.

Applications

The ISO3082DW is ideal for a variety of industrial applications where isolation is critical. These include, but are not limited to, motor drives, factory automation, grid infrastructure, and control systems. It can also be used in medical applications where patient safety and equipment reliability are paramount.

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the ISO3082DW is no exception. This device is built to meet the rigorous standards of industrial performance. With its integrated protections and robust design, the ISO3082DW ensures a reliable interface for extended periods, even in the most demanding conditions.

Summary

The ISO3082DW from Texas Instruments is a robust, isolated RS-485 transceiver that offers high-speed data transmission, ESD protection, and thermal shutdown features. Its wide-body 16-pin SOIC package and wide temperature range make it suitable for a variety of challenging industrial and medical applications. With TI's commitment to quality, this transceiver is designed to deliver reliable and safe communication, making it a top choice for engineers and designers.
