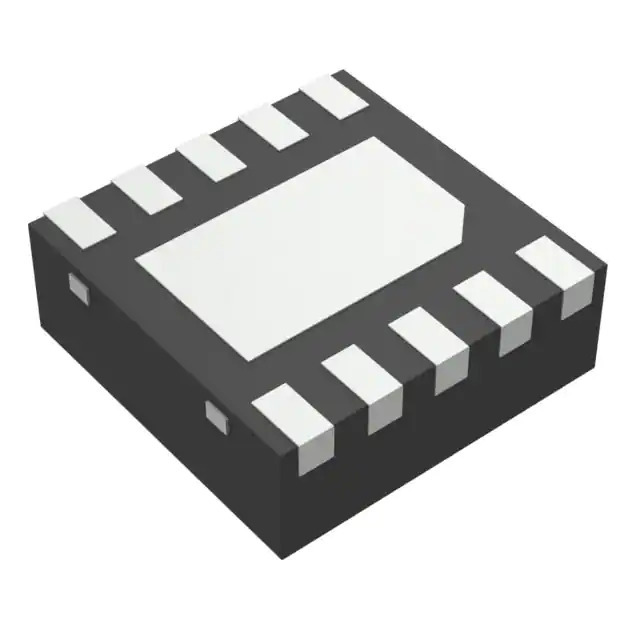

Product Overview: INA2181A2IDSQR by Texas Instruments

The INA2181A2IDSQR is a high-precision, dual-channel, current-sense amplifier designed by Texas Instruments to cater to a wide range of applications requiring accurate current measurement. This state-of-the-art device is a part of TI's industry-leading portfolio of current-sense amplifiers that offer a combination of performance, power efficiency, and versatility.

Key Features

• High Accuracy: The INA2181A2IDSQR boasts a low offset voltage and high common-mode rejection ratio (CMRR), ensuring precise current measurements even in the presence of interfering signals.
• Dual-Channel: With two independent channels, it allows for simultaneous monitoring of two separate current paths, which is ideal for applications like motor control or power management systems.
• Wide Common-Mode Range: The device operates over a wide common-mode voltage range, making it suitable for both high-side and low-side current sensing in systems with varying voltage levels.
• Low Power Consumption: Designed to be energy-efficient, the INA2181A2IDSQR helps in reducing the overall power consumption of the system, which is critical for battery-powered and energy-sensitive applications.

Applications

The versatility of the INA2181A2IDSQR allows it to be used in a multitude of applications. It is particularly well-suited for:

• Power management in servers and telecom equipment
• Battery monitoring in portable devices
• Industrial automation systems
• Automotive systems, including battery management and motor control

Technical Specifications

The INA2181A2IDSQR operates over a temperature range of -40°C to +125°C and comes in a compact QSOP-16 package. It features a low offset voltage of 10 µV (max) and a CMRR of 120 dB (min), with an input bias current of only 7 µA (max). The device's gain is programmable via external resistors, which allows for customization to specific application requirements.

For designers and engineers looking to integrate accurate current sensing into their systems, the INA2181A2IDSQR from Texas Instruments offers a reliable and efficient solution that combines performance with ease of use.
