DS90C241IVSX/NOPB - Texas Instruments SerDes Interface IC

The DS90C241IVSX/NOPB is a robust, high-speed SerDes (Serializer/Deserializer) Interface IC designed by Texas Instruments to facilitate point-to-point data transmission over controlled impedance media of 100 Ω. The differential signaling provided by this device ensures high data integrity and noise immunity, making it an excellent choice for a wide range of industrial and automotive applications where reliability is paramount.

This SerDes interface IC operates over a wide temperature range and is engineered to serialize 24 bits of parallel data for transmission over a single differential pair. This helps to significantly reduce the cable size and cost, as well as the connector footprint and complexity, which is particularly beneficial in space-constrained applications. The DS90C241IVSX/NOPB also provides a full-duplex interface with a separate forward and reverse channel, which can operate at speeds up to 1.5 Gbps for the forward channel and 50 Mbps for the reverse channel, thereby ensuring efficient and reliable high-speed data communication.

One of the key features of the DS90C241IVSX/NOPB is its support for a wide range of data rates and its ability to automatically lock to the incoming data rate without the need for an external reference clock. This feature simplifies the design and reduces system costs. The device also includes a built-in test pattern generation and checking capability, which facilitates system diagnostics and debugging during development and in the field.

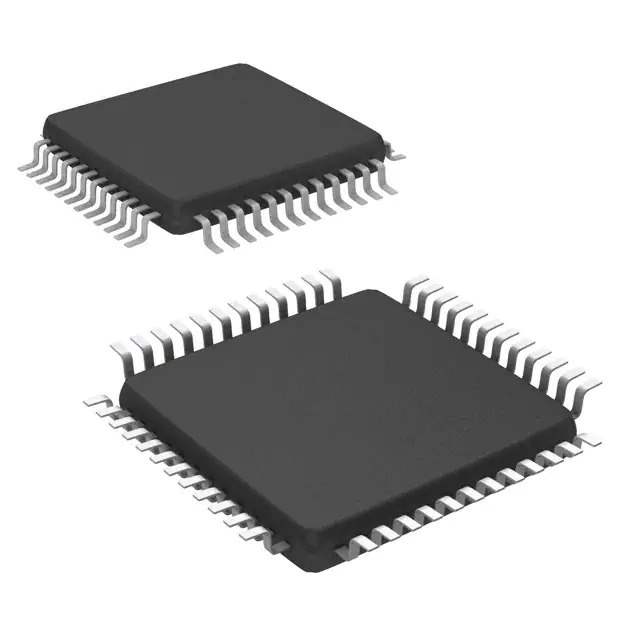

With its low power consumption and small footprint, the DS90C241IVSX/NOPB comes in a compact 48-pin WQFN package, making it an ideal solution for applications where space and power efficiency are critical. Additionally, being part of Texas Instruments' automotive product line, this SerDes interface IC meets stringent quality and reliability standards, including AEC-Q100 qualification, ensuring its suitability for use in harsh automotive environments.

Overall, the DS90C241IVSX/NOPB from Texas Instruments represents a highly integrated and efficient solution for high-speed data transmission, offering designers a combination of performance, reliability, and ease of use that is hard to match.
