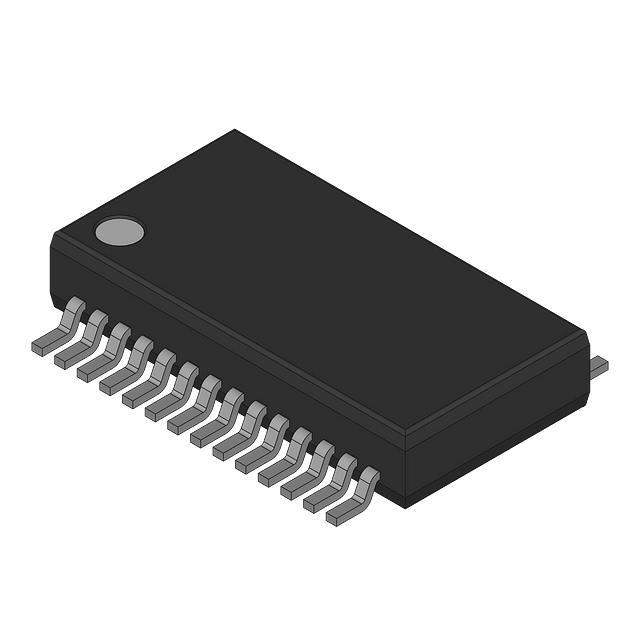

DS14C535MSAX Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Type Transceiver
Protocol RS232
Number of Drivers/Receivers 3/5
Duplex Full
Receiver Hysteresis 1V
Data Rate 128Kbps
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating 0°C to 70°C
Mounting SMD (SMT)
Case / Package 28-SSOP
Win Source Part Number 088195-DS14C535MSAX
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DS14C535MSAX CAD Model

Description

Product Description

The DS14C535MSAX is an advanced CMOS driver/receiver characterized by its high efficiency and robust performance. Tailored for data communication and signal processing, it ensures reliable data transfer in a variety of applications.
