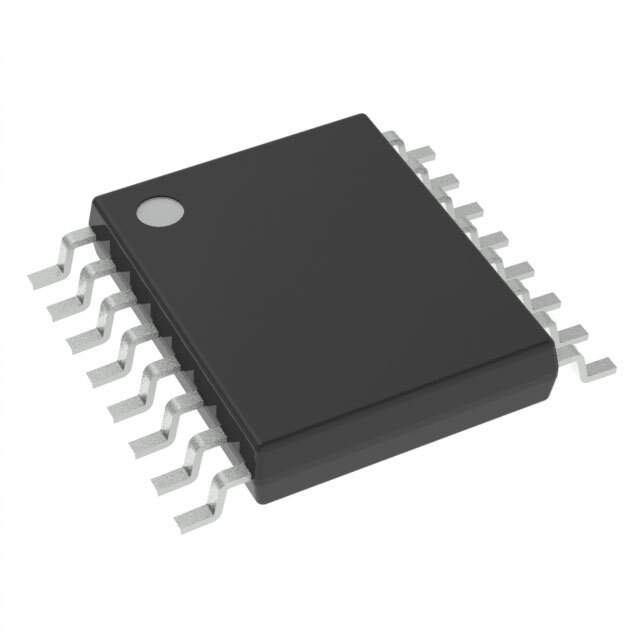

Introducing the DRV8874QPWPRQ1 H-Bridge Motor Driver from Texas Instruments

The DRV8874QPWPRQ1 is a state-of-the-art motor driver designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This robust H-bridge driver is specifically engineered to cater to the demanding requirements of automotive and industrial applications, providing a high-performance solution for controlling DC motors.

Key Features

• Operating Voltage Range: The DRV8874QPWPRQ1 operates over a wide voltage range from 6.5V to 45V, making it versatile for various automotive applications.
• Output Current Capability: It can deliver up to 3.5A of continuous output current, with peak current capabilities of 5A, ensuring sufficient power for a range of motor-driven systems.
• Advanced Protection Features: The device includes a suite of protection features such as overcurrent, thermal shutdown, undervoltage lockout, and cross-conduction prevention, enhancing the reliability and safety of the motor control system.
• Integrated Charge Pump: The built-in charge pump enables 100% duty cycle operation, ensuring motors can be driven with maximum torque throughout the operating range.
• Configurable Control: The DRV8874QPWPRQ1 offers flexible control interface options including PHASE/ENABLE, IN/IN, and PWM modes, providing designers with the choice to select the most suitable control method for their application.

Automotive-Qualified

As an automotive-qualified device, the DRV8874QPWPRQ1 meets stringent quality standards, including AEC-Q100 qualification. This qualification ensures the motor driver can withstand the harsh conditions typical in automotive environments, such as extreme temperatures and vibrations.

Applications

The DRV8874QPWPRQ1 is ideal for a variety of applications within the automotive sector, including but not limited to:

• Power closure systems
• Engine and transmission actuators
• Valve control
• Pumps and fans

With its robust design, comprehensive protection features, and versatile control options, the DRV8874QPWPRQ1 from Texas Instruments is a premier choice for designers looking to implement a reliable and efficient motor control solution in their automotive or industrial systems.
