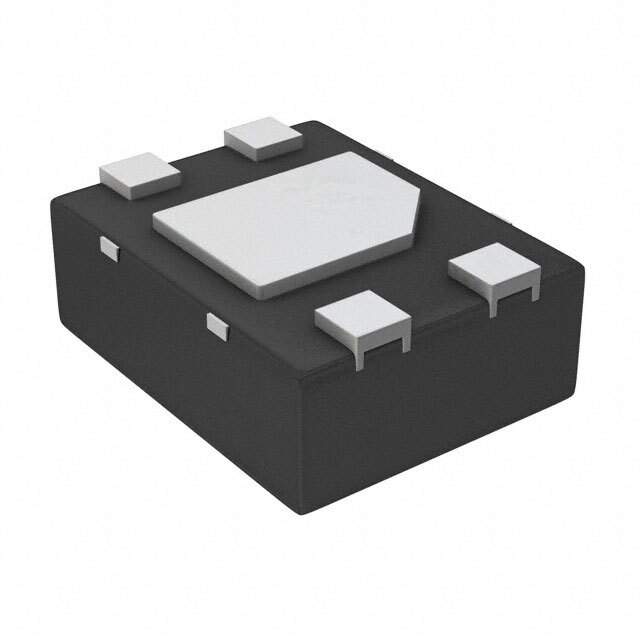

Introducing the DRV5011ADDMRR Hall Effect Sensor from Texas Instruments

The DRV5011ADDMRR is a digital latch Hall effect sensor designed by Texas Instruments for modern, highly accurate position and speed sensing applications. With its advanced features and robust design, this sensor is ideal for a wide range of industrial, automotive, and consumer electronics systems.

Key Features

• Magnetic Sensing: The DRV5011ADDMRR provides reliable magnetic sensing with a latch-type output, which means the output state is altered when a magnetic field of sufficient strength is applied and is maintained until a magnetic field of opposite polarity is detected.
• High Sensitivity: Engineered for high sensitivity, this sensor can detect the presence of a magnetic field with great accuracy, making it suitable for precise position detection tasks.
• Supply Voltage Range: It operates over a wide supply voltage range from 2.7V to 38V, accommodating various application requirements and ensuring compatibility with a broad range of system designs.
• Output: The device provides a digital output that interfaces easily with microcontrollers and digital circuits, simplifying system integration and design.
• Temperature Range: The DRV5011ADDMRR is designed to operate over an extended temperature range, making it suitable for harsh environments and ensuring reliable performance under varying conditions.
• Package: It comes in a small, leaded SOT-23 package that is easy to incorporate into space-constrained designs.

Applications

The versatility of the DRV5011ADDMRR makes it a perfect fit for a multitude of applications, including:

• Brushless DC (BLDC) motor commutation
• Position and speed sensing in robotics
• Flow meters
• Contactless switches and encoders
• Automotive applications requiring high reliability and accuracy

Conclusion

Whether you're developing sophisticated industrial equipment or designing consumer electronics, the DRV5011ADDMRR Hall effect sensor from Texas Instruments provides the performance, durability, and flexibility needed to meet the challenges of advanced sensing applications. Its ease of use, combined with Texas Instruments' reputation for quality, makes it an excellent choice for your sensing needs.
