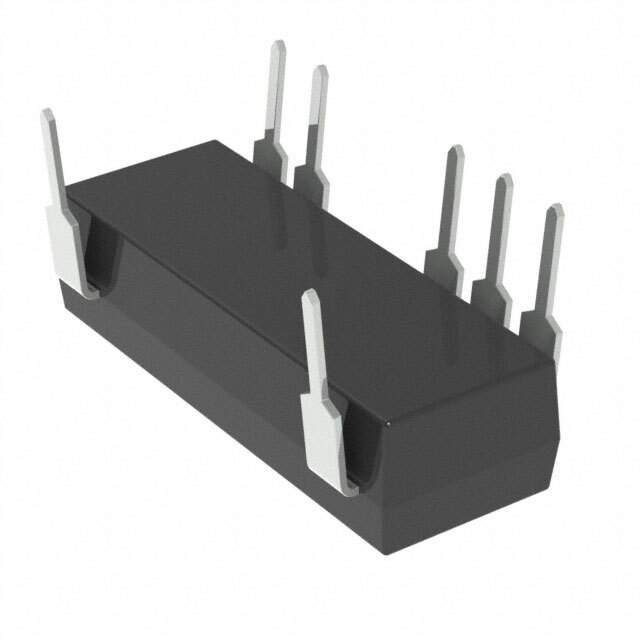

Same model may have multiple batches, images only for reference.

DCP020515DP

Name: DCP020515DP
Brand: Texas Instruments
SKU: 106684
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DCP020515DP
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	IC REG ISOLATED +/-15V 66MA 7DIP
Datasheet	DCP020515DP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	DCP02
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	67mA, 67mA
Power (Watts) - Manufacture Series	2W
Voltage - Isolation	1kV (1000V)
Applications	ITE (Commercial)
Features	OTP
Mounting Style	Through Hole
Package	14-DIP (0.300", 7.62mm) (7 Leads)
Size / Dimension	0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	85%
Power (Watts) - Max	810mW
Win Source Part Number	144683-DCP020515DP
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian DCP020515DP CAD Model

Alternative Products

Description

DCP020515DP

The DCP020515DP is a versatile DC/DC converter ideal for precision power management in advanced electronic projects, offering enhanced protection features and robust performance.

Features and Benefits

Precision Regulation: Ensures stable output voltage across varied loads.
Dual Output: Provides multiple output voltages, enhancing versatility.
Enhanced Protection: Includes overload and short-circuit protection for improved safety.
EMI Compliance: Low electromagnetic interference, suitable for sensitive applications.

Applications

Medical Equipment
Renewable Energy Systems
Data Communication
Consumer Electronics

Additional Information: The DCP020515DP is built to deliver consistent power in demanding environments and configured to minimize energy losses.
