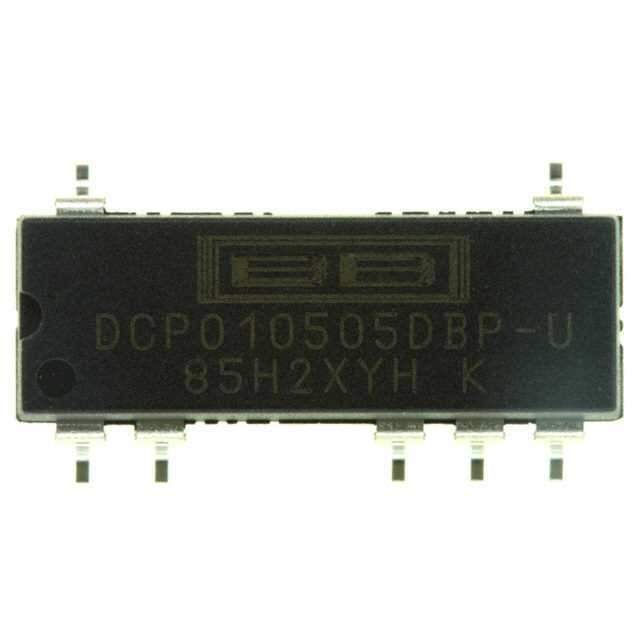

DCP010505DBP-U Real Image
Same model may have multiple batches, images only for reference.

DCP010505DBP-U

Part No DCP010505DBP-U
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC REG ISOLATED +/-5V 0.1A 7SOP
Datasheet
DCP010505DBP-U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series DCP01B
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features OTP, SCP
Mounting Style SMD/SMT
Package 14-SMD Module (7 Leads), Gull Wing
Size / Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Operating Temperature Range -40°C ~ 100°C
Efficiency 81%
Power (Watts) - Max 220mW
Win Source Part Number 013845-DCP010505DBP-U
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DCP010505DBP-U CAD Model

Description

Product Overview

The DCP010505DBP-U is a high-performance, isolated DC-DC converter designed to provide a single, regulated 5 V output. It supports a wide range of applications in various industries, thanks to its reliability and efficiency.

Features and Benefits

  • Compact size for space-constrained applications
  • High isolation voltage to ensure safe operation
  • Excellent load regulation for consistent performance
  • Wide input voltage range for versatile usage

Applications and Projects

  • Industrial automation systems
  • Telecommunication equipment
  • Medical devices
  • Embedded systems
  • Renewable energy controllers

With its robust design and unique features, this converter is ideal for projects demanding reliability and efficient power conversion.
