Texas Instruments DAC8581IPWR Product Overview

The DAC8581IPWR from Texas Instruments is a high-performance, 16-bit digital-to-analog converter (DAC) that offers exceptional accuracy and stability. It is designed to meet the demanding requirements of industrial applications such as process control, automated test equipment, and high-end consumer products. The device operates on a single 5V power supply and features a low-power architecture, making it suitable for power-sensitive applications.

This precision DAC boasts a settling time of just 10 microseconds, enabling rapid updates to analog outputs, which is crucial for real-time control systems. The DAC8581IPWR incorporates a flexible 4-wire serial interface that is compatible with standard SPI, QSPI™, MICROWIRE™, and DSP interface standards, thus allowing for easy integration into a wide range of microcontroller-based systems.

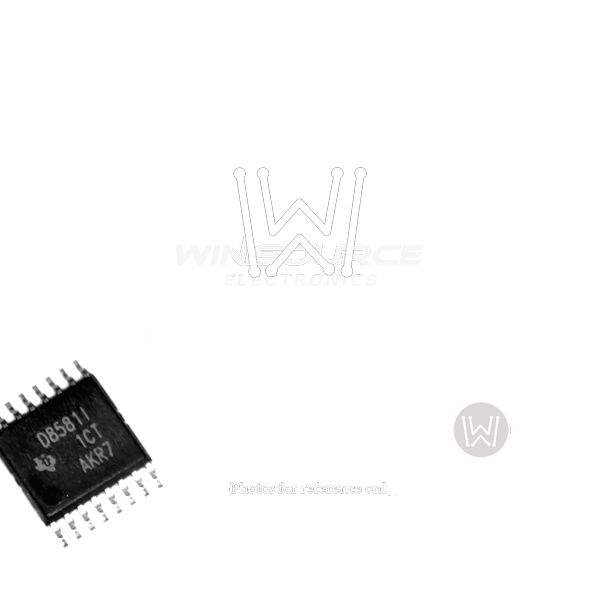

The compact form factor of the DAC8581IPWR is encapsulated in a TSSOP-14 (Thin Shrink Small Outline Package) that offers a space-saving solution on printed circuit boards. This package is designed for surface mount technology, which is beneficial for modern, automated manufacturing processes.

Key features of the DAC8581IPWR include:

• 16-bit monotonic over-temperature resolution
• Low glitch energy: 0.15 nV-s
• Wide temperature range: -40°C to 105°C
• On-chip output buffer amplifier with rail-to-rail operation
• Power-on reset to zero-scale or midscale
• 4-quadrant multiplication capability

Furthermore, the DAC8581IPWR includes a power-down feature that reduces the current consumption to 200 nA at 5V, which is particularly beneficial for battery-operated devices. The device also provides an internal reference with a 2 ppm/°C temperature coefficient and an external reference option, offering flexibility for various application requirements.

Overall, the DAC8581IPWR from Texas Instruments is a robust and reliable component that delivers high-accuracy analog output with minimal power consumption. It is a top choice for designers looking for a high-quality DAC solution that combines performance, versatility, and ease of use.
