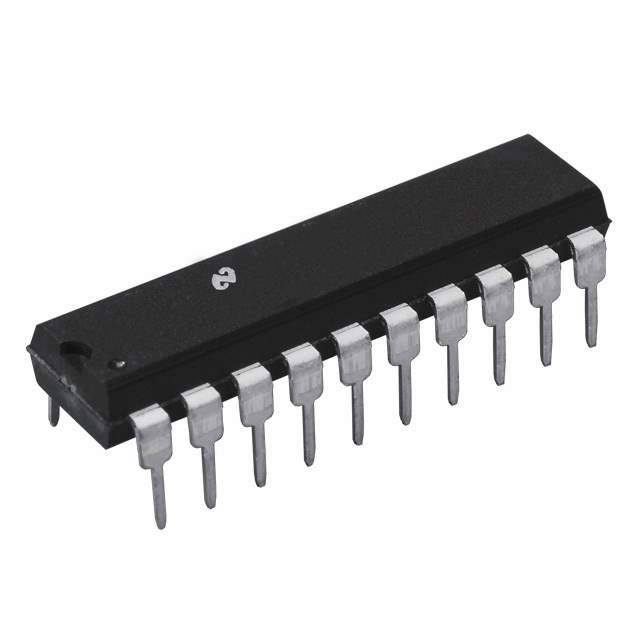

The Texas Instruments COP8SAA720N8 is a highly integrated 8-bit microcontroller that offers a perfect blend of power efficiency and performance for a wide array of applications. This device is part of the COP8™ Family of microcontrollers, which are known for their robustness and reliability in industrial, automotive, and consumer electronics markets.

Key Features

• Core: 8-bit COP8CPU
• Memory: 2K x 16 FLASH on-chip program memory
• RAM: 128 x 8 RAM
• I/O Pins: 28 versatile input/output pins
• Supply Voltage: 2.7V to 5.5V operating range
• Temperature Range: -40°C to +85°C
• Timer: Two 16-bit timer/counters with capture, compare, and PWM capability
• Communication: Serial Communication Interface (SCI) for robust serial data exchange

Advanced Peripherals

The COP8SAA720N8 is equipped with a range of peripherals that enhance its functionality. It includes an 8-channel, 10-bit A/D converter, which allows for precise analog to digital conversions. The device also features a watchdog timer to ensure system reliability and a fail-safe protection mechanism.

Applications

With its versatile feature set, the COP8SAA720N8 is ideal for applications such as:

• Automotive control systems
• Industrial automation
• Consumer electronics
• Power management systems
• LED lighting controls

Package and Availability

The COP8SAA720N8 comes in a 28-pin SOP (Small Outline Package) that is suitable for space-constrained applications. It is available for order and can be sourced directly from Texas Instruments or through their network of authorized distributors.

Support and Resources

Developers can access a wealth of resources including datasheets, application notes, and development tools on the Texas Instruments website to accelerate the design and development process with the COP8SAA720N8 microcontroller.
