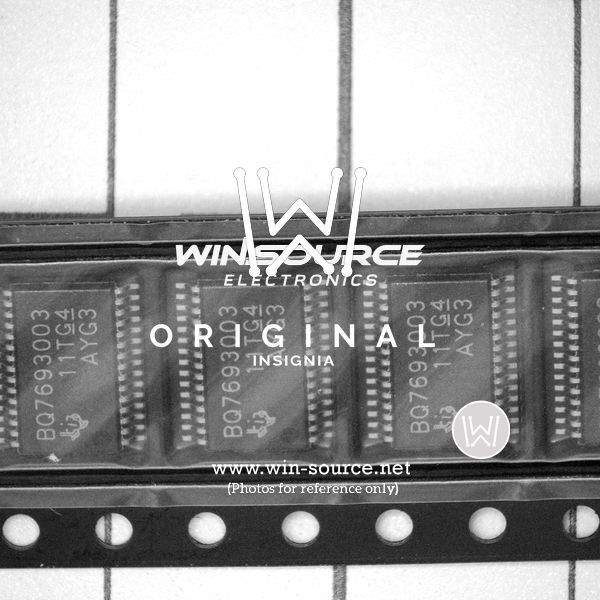

The Texas Instruments BQ7693003DBTR is a cutting-edge battery monitor and protector designed for lithium-ion and lithium-polymer batteries. This integrated circuit provides a comprehensive solution for battery management in high-capacity and high-power applications. It is particularly suitable for portable electronics, electric vehicles, and energy storage systems where efficient and reliable battery monitoring is crucial.

Key Features

• Voltage Monitoring: The BQ7693003DBTR offers precise monitoring of cell voltages, ensuring that each cell is operating within its safe voltage range. This feature is vital for maintaining battery health and preventing overcharging or deep discharge conditions.
• Balancing and Protection: With an integrated cell balancing function, the device can equalize the charge across all cells in a battery pack, which helps to maximize the lifespan and capacity of the battery. It also includes protection features against overcurrent, short circuits, and over-temperature conditions, enhancing the safety of the battery system.
• Communication Interface: The device is equipped with an I2C interface for communication with a microcontroller, allowing for real-time battery status updates and enabling smart battery management systems.
• Configurable Settings: Users can configure the BQ7693003DBTR through its registers to set various thresholds and parameters, tailoring the device to specific application needs.

Applications

• Portable Electronics
• Electric Vehicles
• Energy Storage Systems
• Power Tools
• Uninterruptible Power Supplies (UPS)

Technical Specifications

• Package: 30-TSSOP (DBT)
• Operating Temperature: -40°C to +85°C

The BQ7693003DBTR from Texas Instruments represents an advanced solution for battery management, offering robust features to ensure the safety, efficiency, and longevity of high-performance battery packs. Its integration of monitoring, protection, and communication capabilities makes it an indispensable component for modern battery-powered applications.
