The ADS8689IPWR is a precision, high-performance analog-to-digital converter (ADC) offered by Texas Instruments. This integrated circuit is designed to meet the rigorous demands of industrial applications such as automation and control systems, test and measurement equipment, and medical devices.

Key Features

• Resolution and Sampling Rate: The ADS8689IPWR boasts a 16-bit resolution with a sampling rate of up to 1 MSPS (mega-samples per second), providing high accuracy and speed in data conversion.
• Input Range: It features a true bipolar input range of ±10.24V, allowing the device to handle a wide range of signal inputs without additional signal conditioning.
• Interface: For communication with microcontrollers or digital systems, it includes a flexible SPI-compatible serial interface that supports daisy-chaining in multi-device systems.
• Integrated Features: The device integrates a precision reference and reference buffer, simplifying system design and reducing external component requirements.
• Programmable Gain: It offers a programmable gain amplifier (PGA) with selectable gains, enhancing the flexibility to work with signals of various amplitudes.
• Temperature Range: The ADS8689IPWR is operational over an industrial temperature range of -40°C to +105°C, ensuring reliability in harsh environments.

Package and Quality

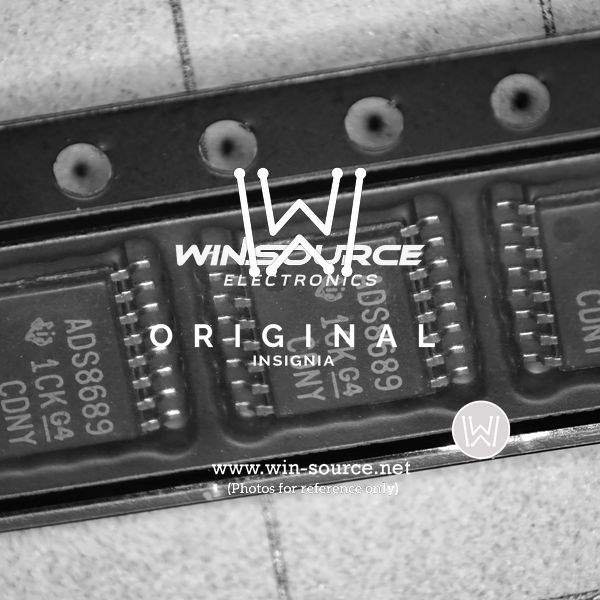

The device is offered in a compact TSSOP-16 (Thin Shrink Small Outline Package) that is conducive to space-constrained applications. Additionally, it conforms to Texas Instruments' high-quality standards, ensuring robust performance and longevity.

Applications

The ADS8689IPWR is suitable for a multitude of applications including motor control, power-quality monitoring, instrumentation, and data acquisition systems. Its precise data conversion capabilities make it an essential component for systems requiring high accuracy and fast throughput.
