Introducing the ADS5463IPFP - A High-Performance ADC from Texas Instruments

The ADS5463IPFP is a state-of-the-art analog-to-digital converter (ADC) from Texas Instruments, designed for applications that demand high-speed data acquisition and processing. With a 12-bit resolution and a sampling rate of up to 500 MSPS (mega samples per second), this ADC offers excellent dynamic performance and is ideal for a wide range of applications, including radar systems, wireless communications, and test equipment.

One of the key features of the ADS5463IPFP is its high signal-to-noise ratio (SNR), which ensures that the signal integrity is maintained even in noisy environments. This is complemented by a high spurious-free dynamic range (SFDR) that minimizes the presence of unwanted signals within the bandwidth of interest, making it perfect for sophisticated signal processing tasks.

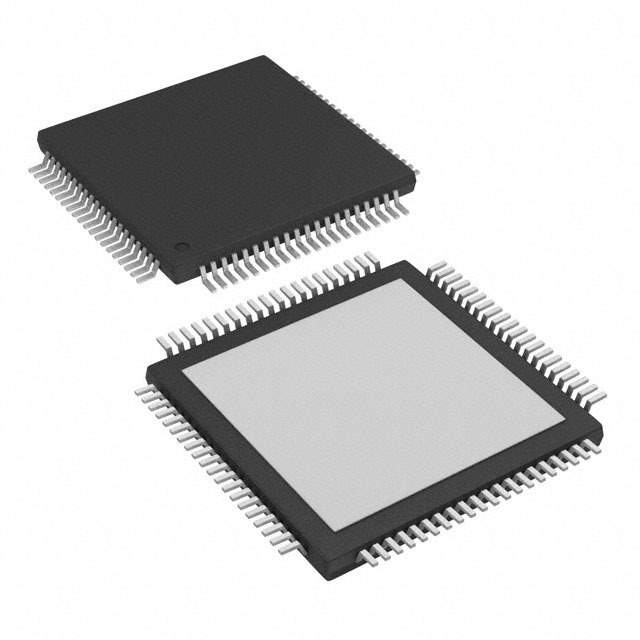

The ADS5463IPFP is housed in a compact 80-pin PowerPAD™ QFP (quad flat package) that is designed to optimize thermal performance, ensuring reliable operation under varying conditions. The device operates over a wide analog input bandwidth, which allows it to capture high-frequency signals with precision.

For ease of integration into digital systems, the ADS5463IPFP features a flexible LVDS (low-voltage differential signaling) interface that supports double data rate (DDR) output. This interface provides a high-speed data connection while minimizing the number of required input/output pins, thus simplifying the design of the digital interface circuitry.

Moreover, the ADS5463IPFP offers programmable gain options that allow users to optimize the input signal amplitude to match the full-scale range of the ADC, thereby maximizing the dynamic range for each application. Additionally, the device includes an internal dither option that can be used to improve the effective number of bits (ENOB) in certain applications.

Overall, the Texas Instruments ADS5463IPFP is an exceptional choice for designers who require a high-performance ADC that combines speed, accuracy, and reliability. Its advanced features and robust design make it an essential component in the development of high-end and precision-demanding electronic systems.
