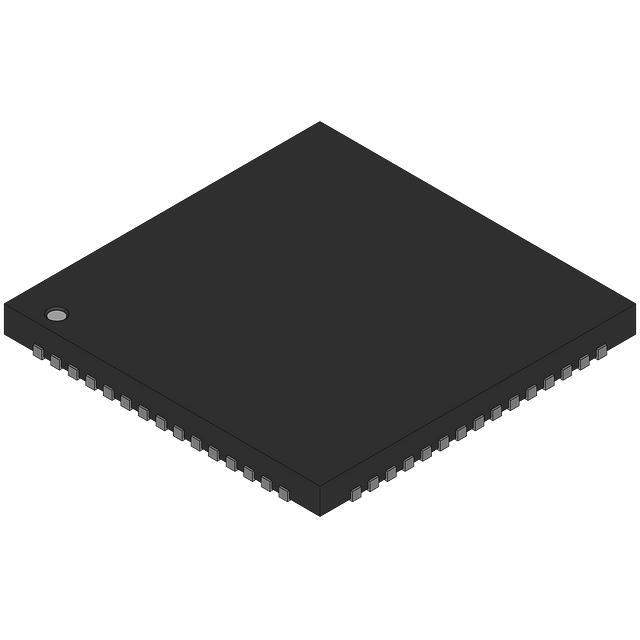

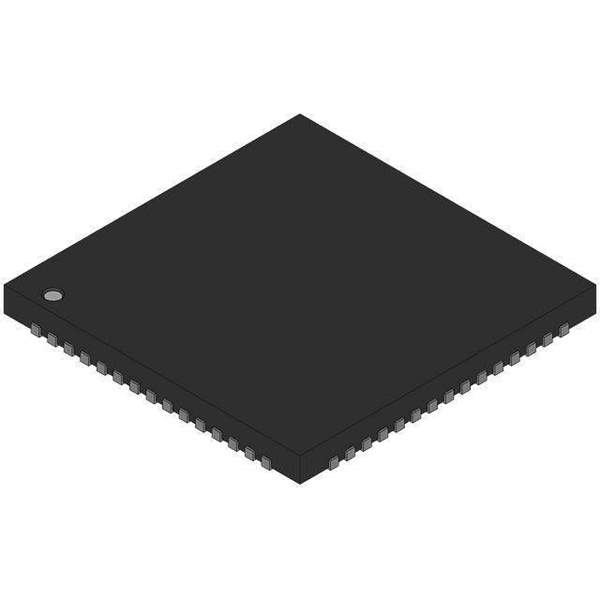

Product Overview: ADC14DC105CISQE/NOPB

The ADC14DC105CISQE/NOPB is a high-performance, low-power, 14-bit, 105 MSPS (Mega Samples Per Second) analog-to-digital converter (ADC) developed by Texas Instruments. This ADC is designed to meet the rigorous demands of advanced digital signal processing (DSP) applications such as medical imaging, test and measurement, communication systems, and radar. With its exceptional speed and accuracy, the ADC14DC105CISQE/NOPB is an ideal component for systems requiring high data acquisition rates and precise signal conversion.

Key Features:

• Resolution: The device offers a fine resolution of 14 bits, which provides high precision in signal conversion, ensuring that the digital representation closely matches the original analog signal.
• Sampling Rate: With a sampling rate of 105 MSPS, this ADC can process fast-changing signals and is suitable for high-speed applications.
• Low Power Consumption: The ADC14DC105CISQE/NOPB is designed for efficiency, consuming low power, which makes it an excellent choice for portable and battery-powered devices.
• Input Range: It features a flexible input range, accommodating a variety of signal amplitudes, which enhances its versatility in different system designs.
• Differential Inputs: Differential inputs reduce common-mode noise and improve the signal integrity, which is crucial for high-speed signal processing.
• Output Format: The device supports various output formats, including LVDS (Low-Voltage Differential Signaling), to ensure compatibility with a wide range of digital systems.

Applications:

The ADC14DC105CISQE/NOPB is well-suited for various applications across multiple industries. Some of its typical applications include:

• Medical Imaging Systems
• Wireless and Wired Communications
• Test and Measurement Equipment
• Radar and Satellite Systems
• High-Speed Data Acquisition Systems

Quality and Reliability:

As with all Texas Instruments products, the ADC14DC105CISQE/NOPB is manufactured to the highest quality standards, ensuring reliability and performance in even the most demanding environments. The part number suffix 'NOPB' indicates that this product is offered in a lead-free package, adhering to environmental standards and regulations.

Whether you're designing a sophisticated medical device or a high-speed communication interface, the ADC14DC105CISQE/NOPB from Texas Instruments provides the accuracy, speed, and reliability needed to achieve outstanding performance.
