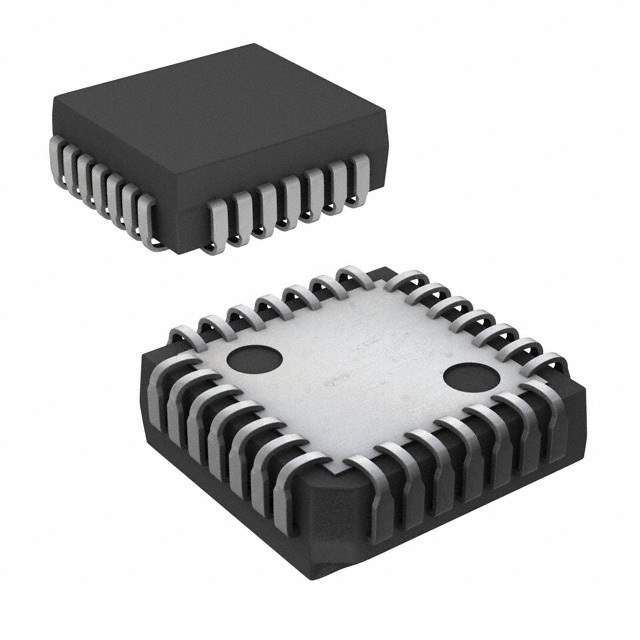

The ADC0808CCVX from Texas Instruments is a high-performance, 8-bit analog-to-digital converter (ADC) designed to bridge the gap between the analog and digital worlds in your electronic projects and products. This versatile ADC features a successive approximation register architecture, ensuring rapid and accurate conversion of analog signals to digital form.
Key Features
- Resolution: 8-Bit, providing a fine granularity of 256 different digital levels for your analog input signals.
- Channels: 8-channel multiplexer with a common analog ground, which allows for multiple signal inputs, making it ideal for multi-signal applications.
- Conversion Time: Fast conversion time of typically just 100 microseconds, ensuring that even rapidly changing signals are accurately captured.
- Interface: Easy-to-use digital interface that is compatible with most microcontrollers and digital systems.
- Supply Voltage: Operates on a single power supply ranging from 5V to 6.3V, making it suitable for a wide range of applications and simplifying power supply design.
Applications
The ADC0808CCVX is perfect for a variety of applications, including:
- Data acquisition systems
- Battery-operated systems
- Instrumentation and control systems
- Medical equipment
- Automotive systems
Quality and Reliability
Texas Instruments is known for its commitment to quality and the ADC0808CCVX is no exception. It is built to meet high standards of reliability and performance, ensuring that it can withstand the demands of even the most challenging applications.
Support and Resources
Designers and engineers can take advantage of the extensive support and resources available from Texas Instruments, including detailed datasheets, application notes, and easy-to-use development tools to help accelerate the design process.
Whether you're designing a sophisticated industrial system or a simple hobbyist project, the ADC0808CCVX from Texas Instruments provides the functionality and reliability you need to accurately convert analog signals to digital data.
