Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Texas Instruments
Packaging Bulk

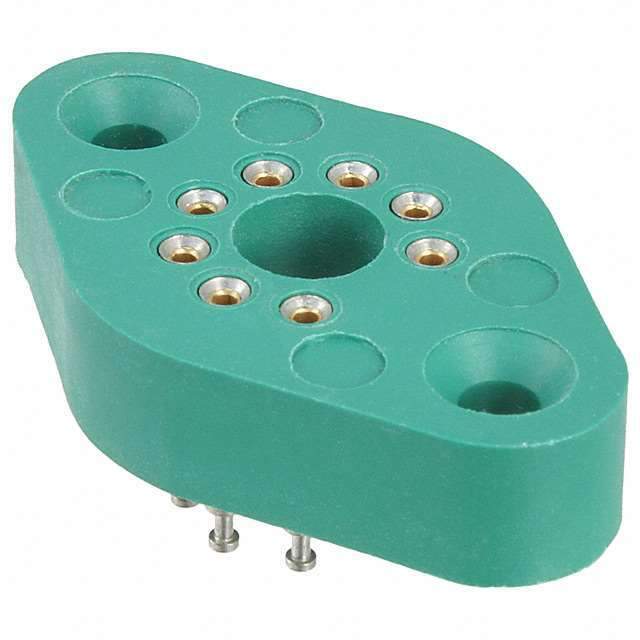

Type Transistor, TO-3
Number of Positions or Pins (Grid) 8 (Oval)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Material - Mating Beryllium Copper
Mounting Style Through Hole
Features Closed Frame
Termination Solder
Contact Finish - Post Tin
Contact Finish Thickness - Post 200μin (5.08μm)
Contact Material - Post Brass
Housing Material Polyester, Glass Filled
Operating Temperature Range -55°C ~ 150°C
Material Flammability Rating UL94 V-0
Contact Resistance 20 mOhm
Win Source Part Number 760013-0804MC
Popularity Medium
Supply and Demand Status Limited
Family Name 0804MC
Introduction Date November 01, 1999
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian 0804MC CAD Model

Description

The Texas Instruments 0804MC is a state-of-the-art integrated circuit designed for high-performance applications. It is a versatile component that caters to a wide range of industries, from automotive to consumer electronics. With its robust design and cutting-edge technology, the 0804MC is engineered to deliver reliability and efficiency.

Key Features

  • High Precision: The 0804MC offers exceptional accuracy and stability, making it ideal for critical applications where precision is paramount.
  • Low Power Consumption: Designed with energy efficiency in mind, this IC maintains its performance while minimizing power usage, thereby extending the battery life of portable devices.
  • Durability: Built to withstand harsh environments, the 0804MC operates reliably across a wide temperature range and is resistant to mechanical stress.
  • Easy Integration: This component is designed for easy integration into various circuit designs, thanks to its compatibility with standard interfaces and a compact footprint.

Applications

The versatility of the Texas Instruments 0804MC allows it to be employed in numerous applications, including but not limited to:

  • Automotive systems
  • Industrial automation
  • Consumer electronics
  • Medical devices
  • Telecommunications

Technical Specifications

Parameter Value Supply Voltage Specified Range Operating Temperature Specified Range Package Type Industry Standard Interface Type Standard Compatible

Support and Resources

Texas Instruments provides comprehensive support and resources for the 0804MC, including detailed datasheets, application notes, and design resources. Customers can also access TI's technical support team for assistance with implementation and troubleshooting.

Note: The actual specifications of Product 0804MC are not provided in this description. For accurate and detailed specifications, please refer to the official Texas Instruments datasheet for Product 0804MC.
